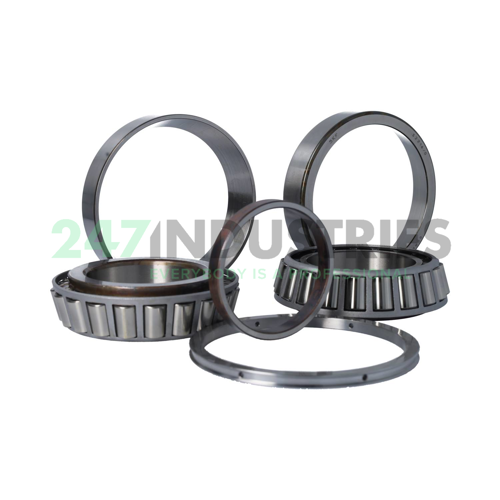

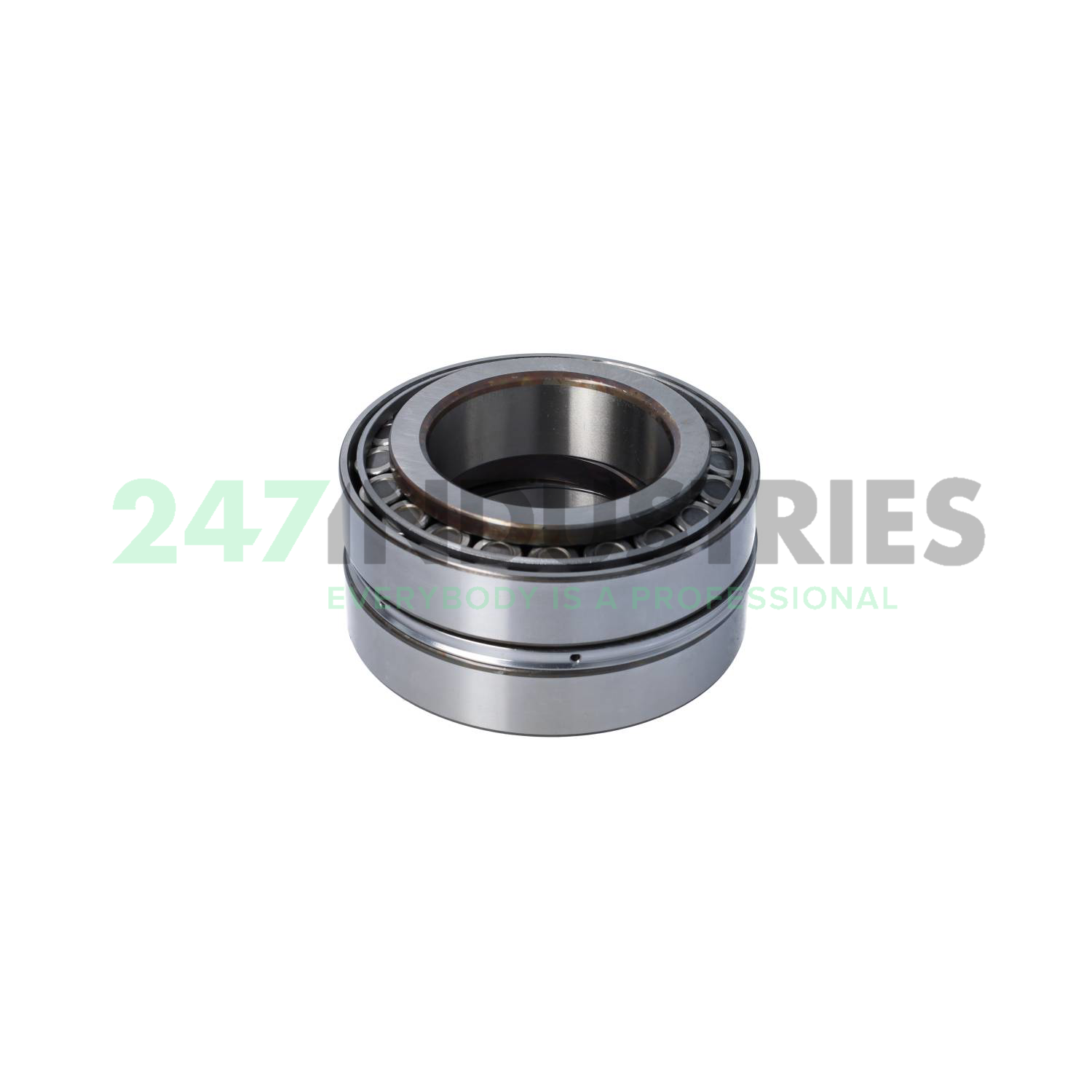

32216T78J2/QDBC110 SKF

Alle Abmessungen

1. Innen (d) mm 80
2. Außen (D) mm 140
3. Breite (B) mm 78
4. Innen (d) Zoll 3.1496
5. Außen (D) Zoll 5.5118
6. Breite (B) Zoll 3.0709

Suffixbeschreibungen

1. T78 T, Followed By A Figure, Identifies The Total Width Of Bearing Pairs Arranged Back-To-Back Or In Tandem
2. J2 Pressed Steel Window-Type Cage. A Figure Following The J Indicates A Different Cage Design
3. Q Optimized Contact Geometry And Surface Finish
4. DB Matched Bearings Pair Arranged Back-To-Back. A Figure Combination Immediately Following The DB Identifies The Design Of The Intermediate Rings
5. C110 Axial Clearance in µm

Technische Daten

1. Verfügbarkeit 1 St.
2. Marke SKF
3. Item number 32216T78J2/QDBC110 SKF
4. Category Kegelrollenlager einreihig

Gewicht und Abmessungen

1. Gewicht (kg) 4.45

Produkteigenschaften

1. Kegelrolle Paar Luft Innen DB – Standardpaar metrisch O-Anordnung
