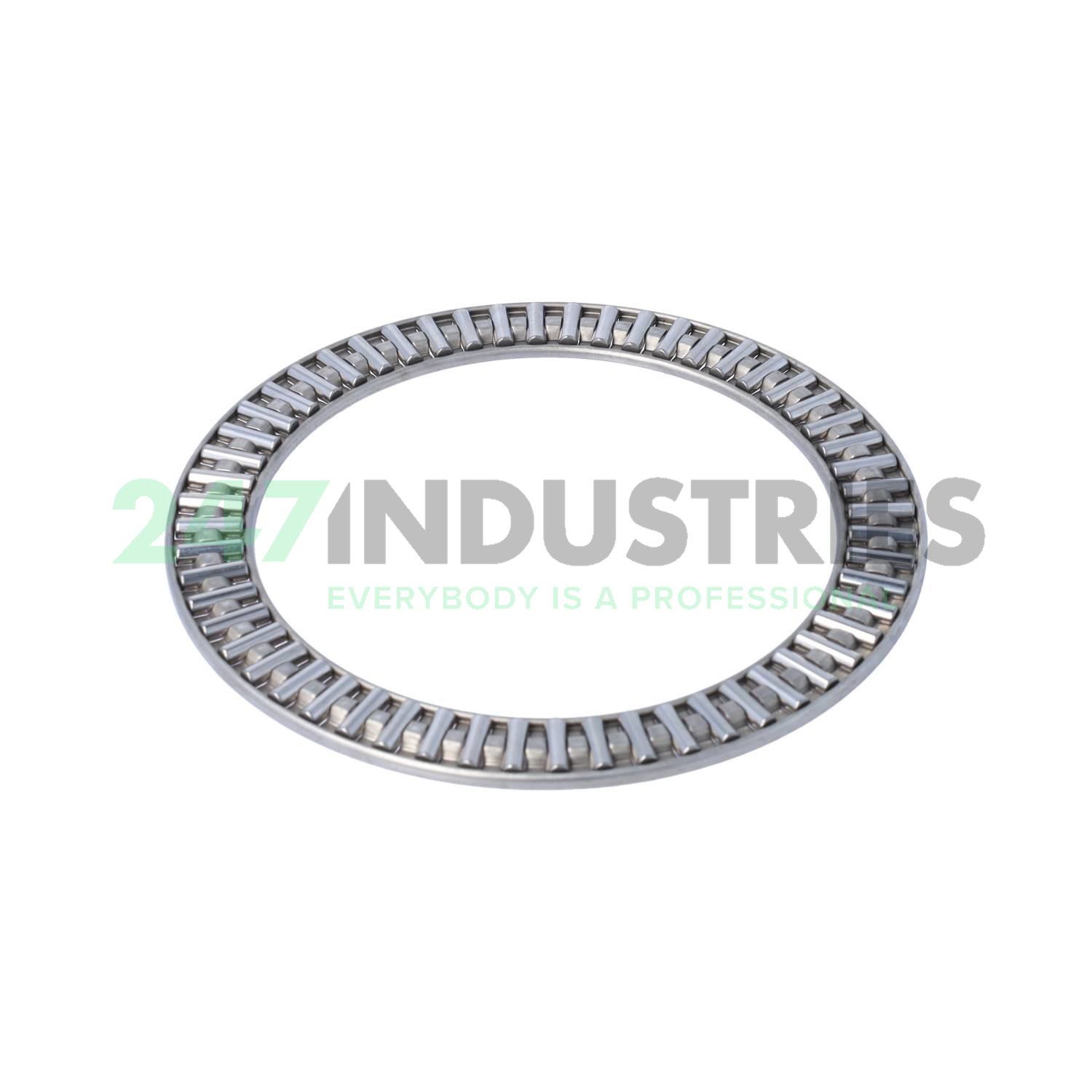

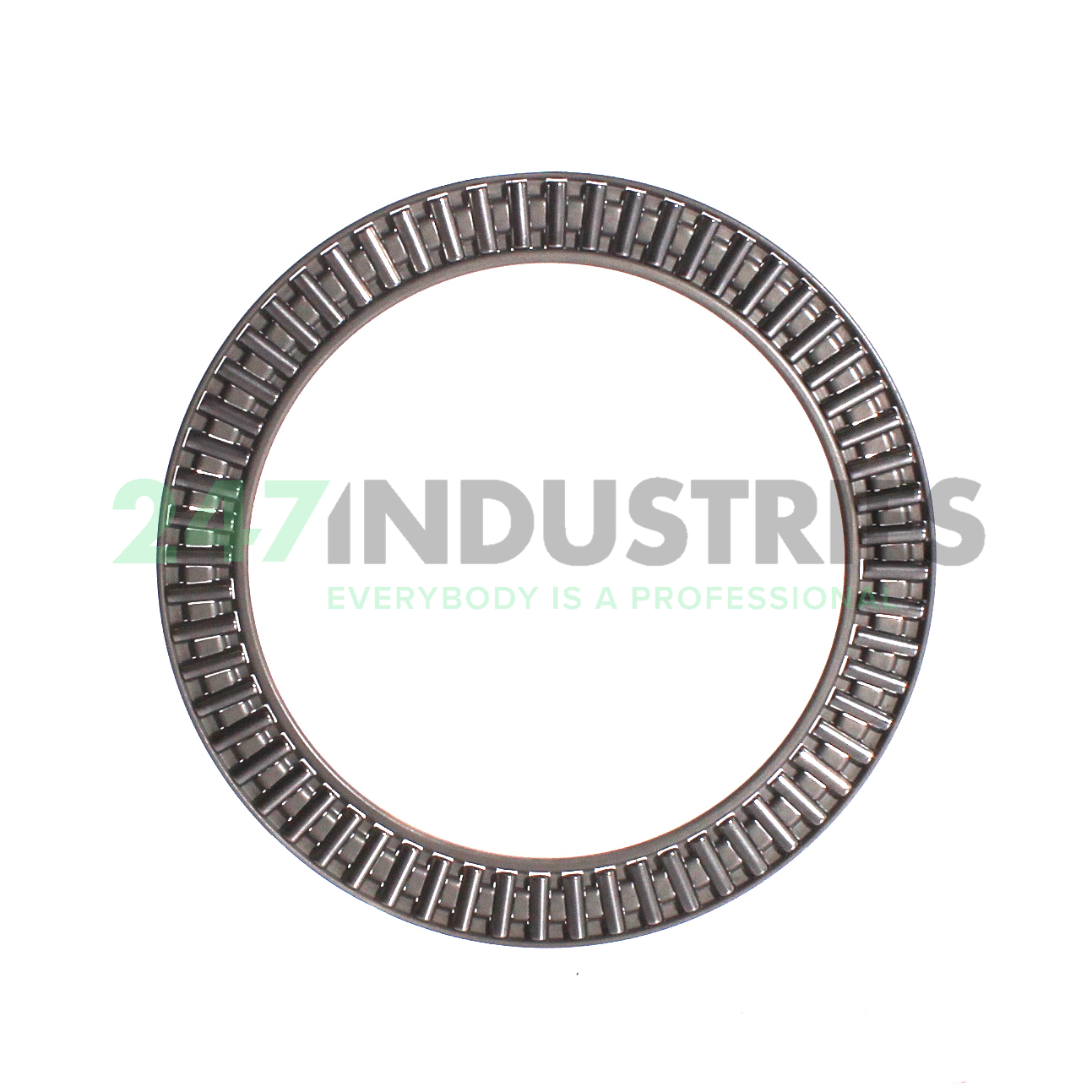

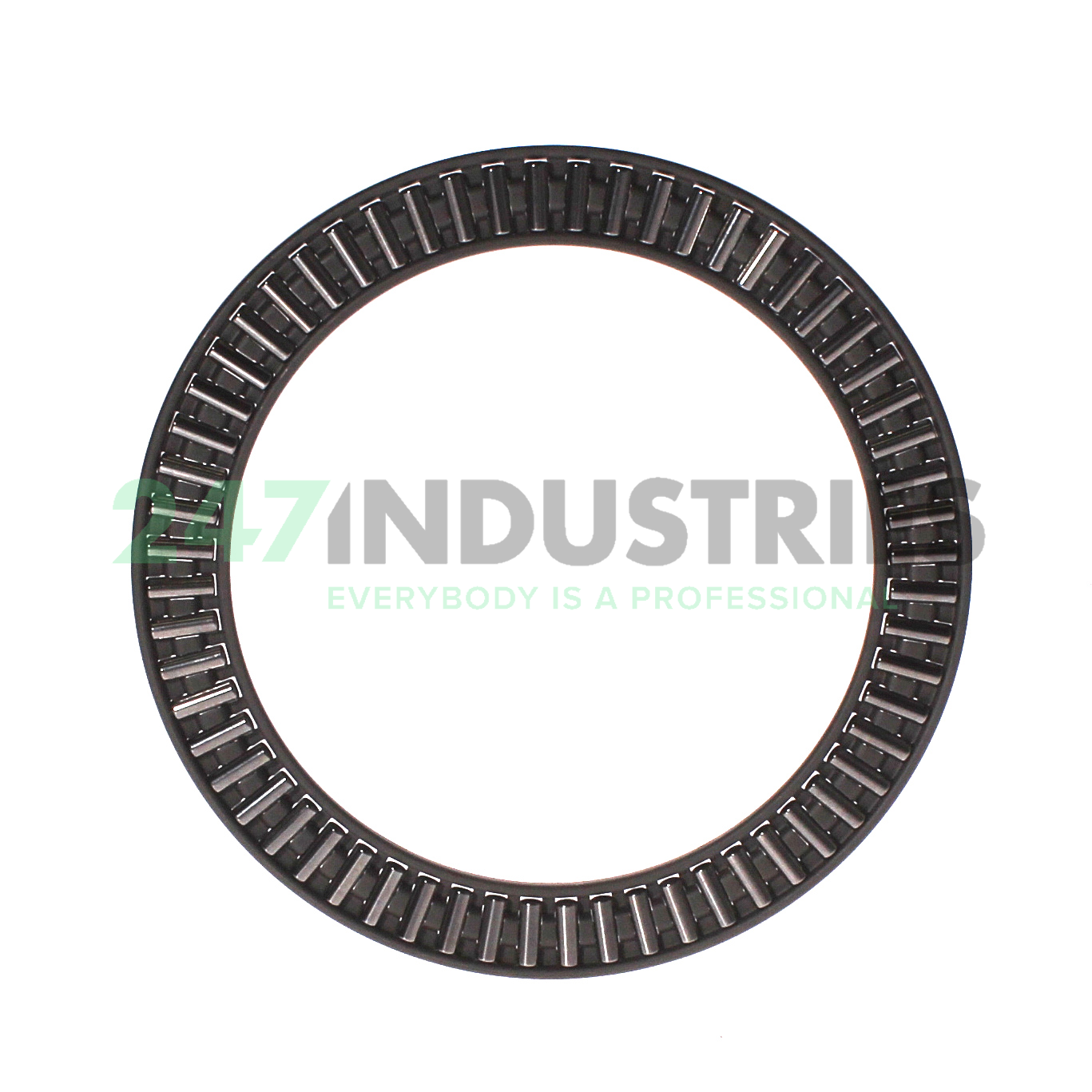

AXK110145-A/0-10 INA

Alle Abmessungen

1. Innen (d) mm 110
2. Außen (D) mm 145
3. Breite (B) mm 4
4. Innen (d) Zoll 4.3307
5. Außen (D) Zoll 5.7087
6. Breite (B) Zoll 0.1575

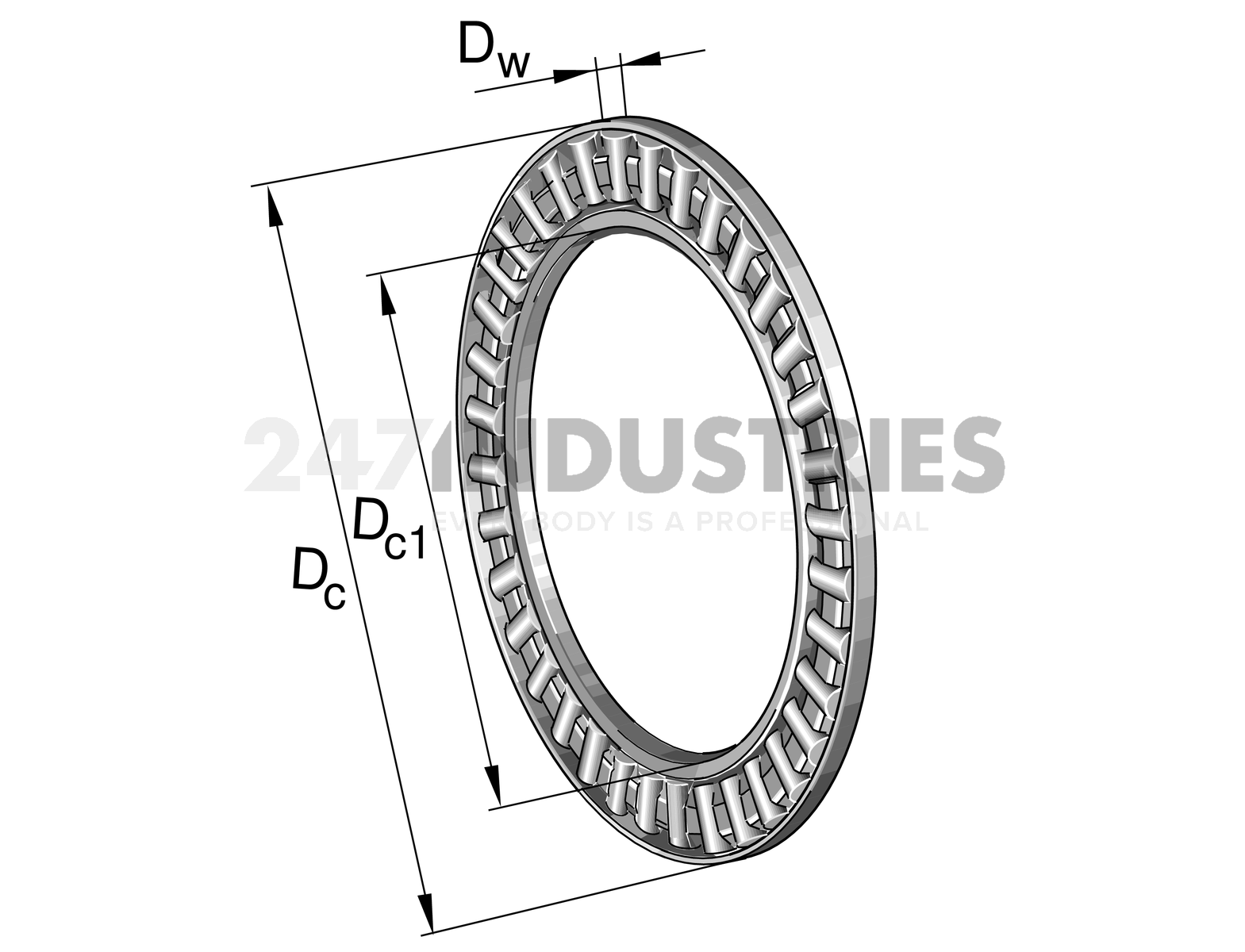

7. Außendurchmesser (D c) mm 145
8. Durchmesser der Wälzkörper (D W) mm 4
9. Laufbahndimension (E a) mm 143
10. Laufbahndimension (E b) mm 115

Suffixbeschreibungen

1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
2. /0-10 Micron - Needle Sort

Technische Daten

1. Verfügbarkeit 30 St.
2. Marke INA
3. Item number AXK110145-A/0-10 INA
4. Also known as 0000358079065

5. EAN 4012802369045
6. Category Axial-Nadelkränze

Gewicht und Abmessungen

1. Gewicht (kg) 0.122

Angaben von Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 620000
2. Axial Dynamic Load Rating Ca (N) 97000
3. Begrenzungsdrehzahl (n G) 2260
4. Referenzdrehzahl (n ϑr) 890
5. ECLASS number 23-05-11-90
6. ECLASS2 number 23-05-11-90
7. Medias beschreibung Axial-Nadelkränze, einseitig wirkend, nach DIN 5405-2
