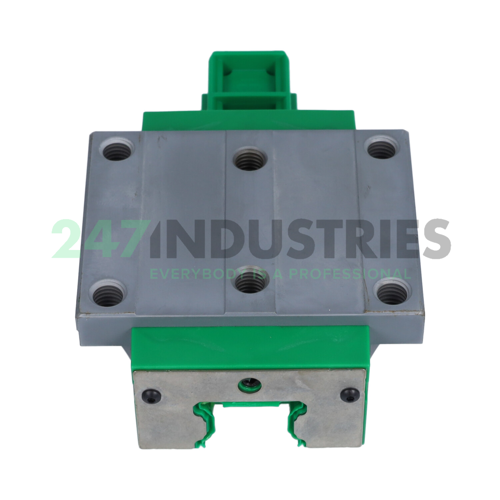

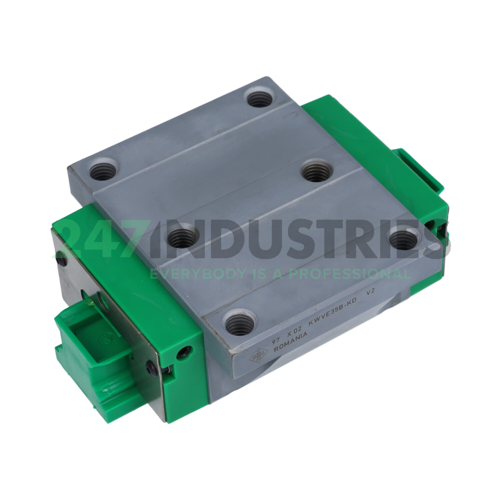

KWVE35-B-KD-V2-G3 INA

Alle Abmessungen

1. Innen (d) mm 34
2. Außen (D) mm 100
3. Breite (B) mm 41,3
4. Innen (d) Zoll 1.3386
5. Außen (D) Zoll 3.937
6. Breite (B) Zoll 1.626

Suffixbeschreibungen

1. B Version
2. KD Components Coated With Protect A Have The Suffix KD (Protect A Is A Pure Chromium Coating With A Columnar Surface Structure). When Using Protect A, Coated Carriages And Coated Guideways Must Always Be Combined. If Coated Carriages Are Used With Uncoated Guideways, For Example, This Will Lead To A Reduction In Preload
3. V2 Preload Class 2
4. G3 Precision Class 3

Technische Daten

1. Verfügbarkeit 2 St.
2. Marke INA
3. Item number KWVE35-B-KD-V2-G3 INA
4. Also known as 0314698170340

5. EAN 4054366357052
6. Category Linear-Gleitlager-Einheiten

Gewicht und Abmessungen

1. Gewicht (kg) 1.75

Produkteigenschaften

1. Dichtung Keine Dichtung

Angaben von Schaeffler (medias)

1. ECLASS number 23-30-04-90
2. ECLASS2 number 23-30-04-90

Downloads und Links

1. Link to manufacturer Link to manufacturer
