0-12 Nachi

Single-direction thrust ball bearing

Stock
2 pcs in stock and ready for shipment
Brand Nachi
Article number 0-12 Nachi
Inside diameter 38,1mm
Outside diameter 59,53mm
Width 18,25mm
Product description

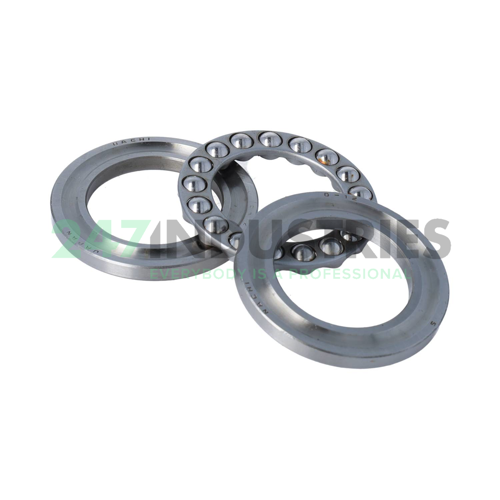

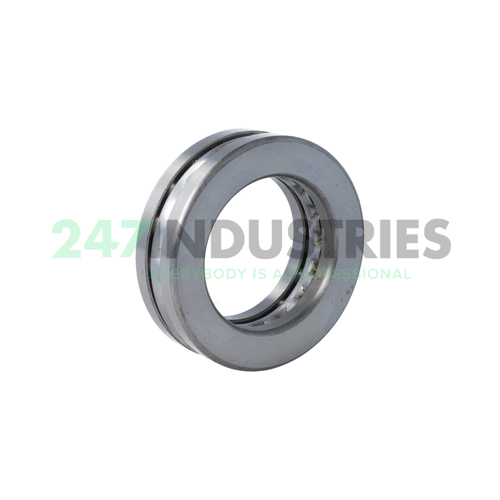

The 0-12 Nachi belongs to the single direction thrust ball bearings, also called ball thrust bearings or axial deep groove ball bearings. These bearings consist of a shaft ring, a housing ring and a ball and cage assembly. Thrust ball bearings have an open design. The balls make them suitable for high rotational speeds. Single direction thrust ball bearings can only be loaded axially in one direction. A shaft can be locked in one direction this way. Radially, they must not be loaded.

As thrust ball bearings can be disassembled, the components can easily be mounted separately. Be careful not to mix up the shaft and housing ring when you are assembling the bearing. The shaft ring is attached to the shaft. This ring rotates with the shaft. The housing ring has a slightly larger bore diameter, allowing the shaft to pass with some clearance.

Read more Show less
Help with this product

Similar to: 0-12 Nachi

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 38,1
  2. Outer (D) MM 59,53
  3. Width (B) MM 18,25
  4. Inner (d) Inch 1.5
  5. Outer (D) Inch 2.3437
  6. Width (B) Inch 0.7187

Technical details

  1. Availability 2 pcs
  2. Brand Nachi
  3. Item number 0-12 Nachi
  4. Also known as O12
  5. Category Thrust Ball Bearing Single Direction

Weight and Dimensions

  1. Weight (kg) 0.2

Product Properties

  1. Cage Type S - Steel or Standard Cage
  2. Precision Standard Precision
