11208-TVH FAG

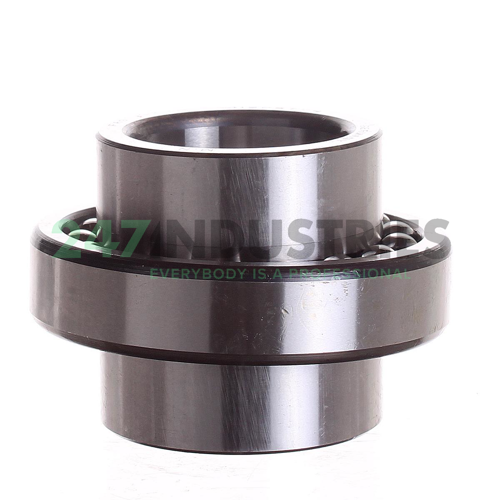

Double-row self-aligning ball bearing with widened inner ring

Stock
3 pcs available
Brand FAG
Article number 11208-TVH FAG
Inside diameter 40mm
Outside diameter 80mm
Width 56mm
Product description

The 11208-TVH FAG belongs to the group of double-row self-aligning deep-groove ball bearings. This bearing type with a widened inner ring is a double-row bearing. Both rows are housed in a spherical raceway in the outer ring. This construction allows the bearing to be self-aligning. This means that any misalignment of the shaft relative to the bearing housing does not adversely affect performance.

These features make the 11208-TVH FAG highly suitable for applications where substantial misalignment or shaft deflections may occur. Also, self-aligning bearings have the lowest friction of all rolling-element bearings. Even at higher speeds, there is only limited frictional heat. These bearings are capable of handling high radial loads. To a lesser extent, they can be axially loaded in both directions.

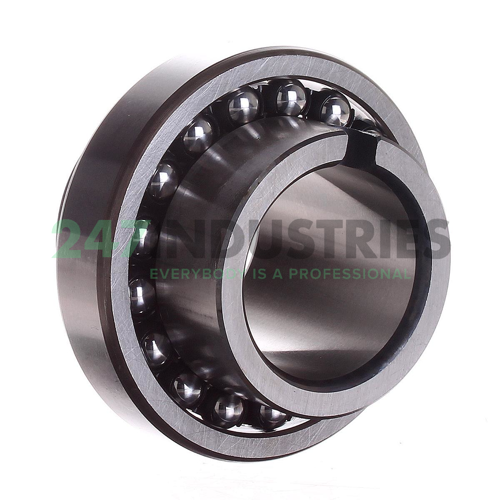

Finally, the 11208-TVH FAG has a widened inner ring. This construction is designed for use in less demanding applications with conventional shafts. Bearings with widened inner rings have a special bore tolerance that will make (dis)assembly much easier. The inner ring has a recess on one side. This means that this bearing type can be very easily secured axially to the shaft with a pin or a locking screw.

Read more Show less
Help with this product

Downloads and links

Similar to: 11208-TVH FAG

Loading similair products

Product specifications

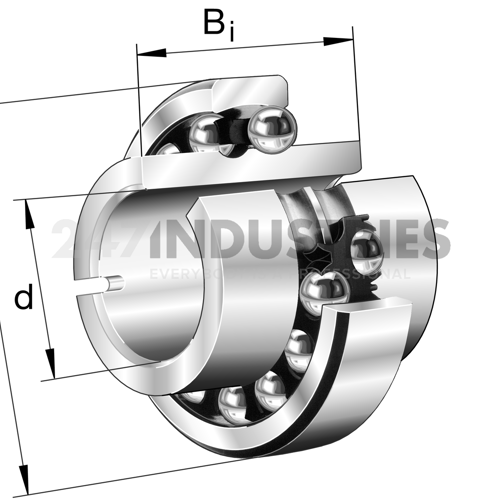

All dimensions

  1. Inner (d) MM 40
  2. Outer (D) MM 80
  3. Width (B) MM 56
  4. Inner (d) Inch 1.5748
  5. Outer (D) Inch 3.1496
  6. Width (B) Inch 2.2047
  7. Width inner ring (B) mm 56
  8. Width outer ring (B) mm 18

Suffix description

  1. TVH Solid Cage Made From Glass Fibre Reinforced Polyamide 66

Technical details

  1. Availability 3 pcs
  2. Brand FAG
  3. Item number 11208-TVH FAG
  4. Also known as 0167001630000
    0979767090000
    11208-TVH>J
    11209TN9
    11209TNG
  5. EAN 4012801183468
  6. Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 0.72

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal No Seal
  3. Cage Type P - Plastic Molded Cage
  4. Radial Internal Play Cn Normal Internal Play
  5. Precision Standard Precision
  6. Lubrication Standard Lubrication
  7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 6500
  2. Radial Dynamic Load Rating Cr (N) 19400
  3. Basic static load rating, radial (C 0r) "6500.0000"
  4. Limiting speed (n G) 10100
  5. Reference speed (n ϑr) 8600
  6. ECLASS number 23-05-08-06
  7. ECLASS2 number 23-05-08-06
  8. Medias description Self-aligning ball bearings 112, main dimensions to DIN 630, with extended inner ring
