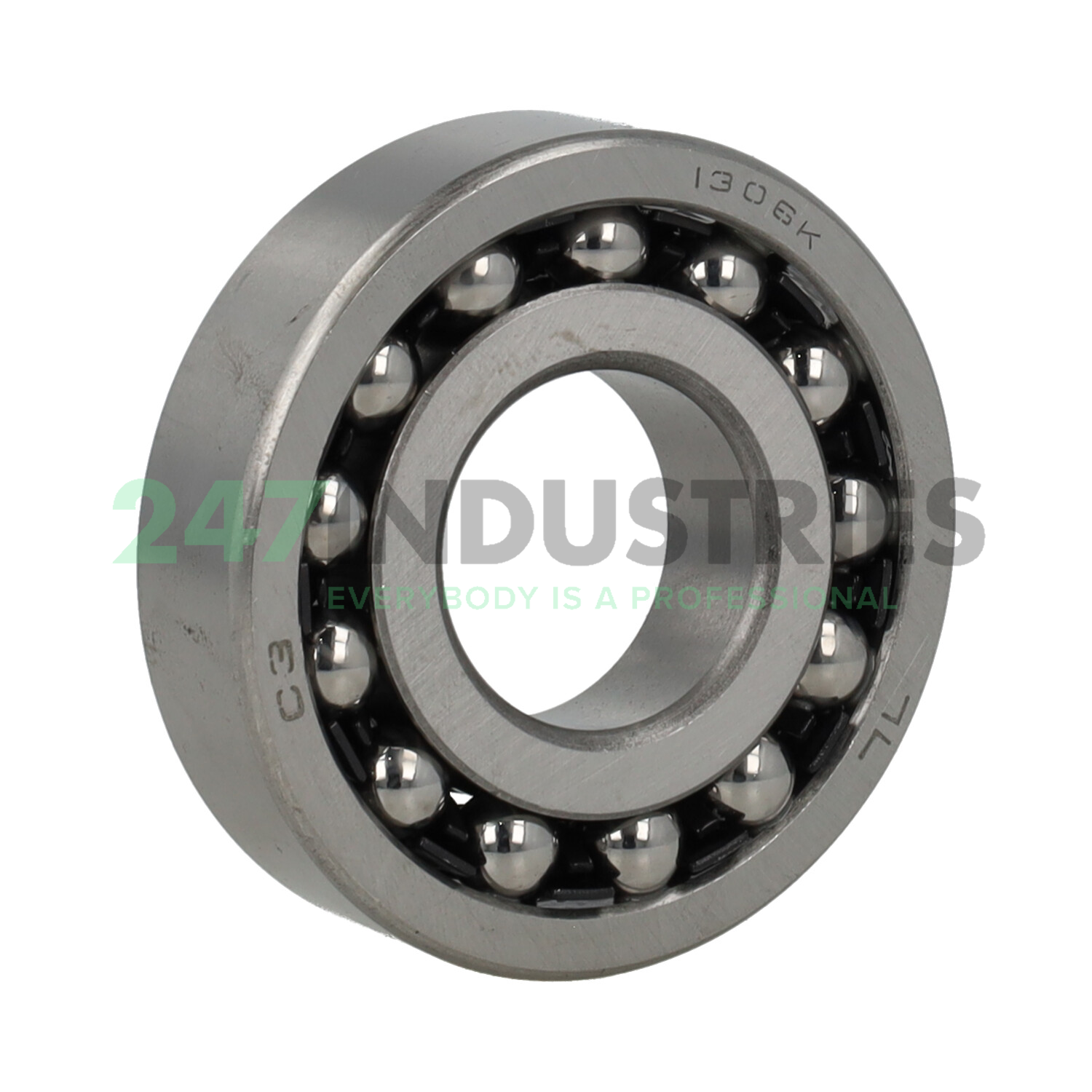

1306K C3 NTN

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 72
3. Width (B) MM 19
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.748

Suffix description

1. K Tapered Bore, Taper 1:12
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number 1306K C3 NTN
4. Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.381

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. Radial Internal Play C3 Internal Play (Higher than Cn)
5. Precision Standard Precision
6. Lubrication Standard Lubrication
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
