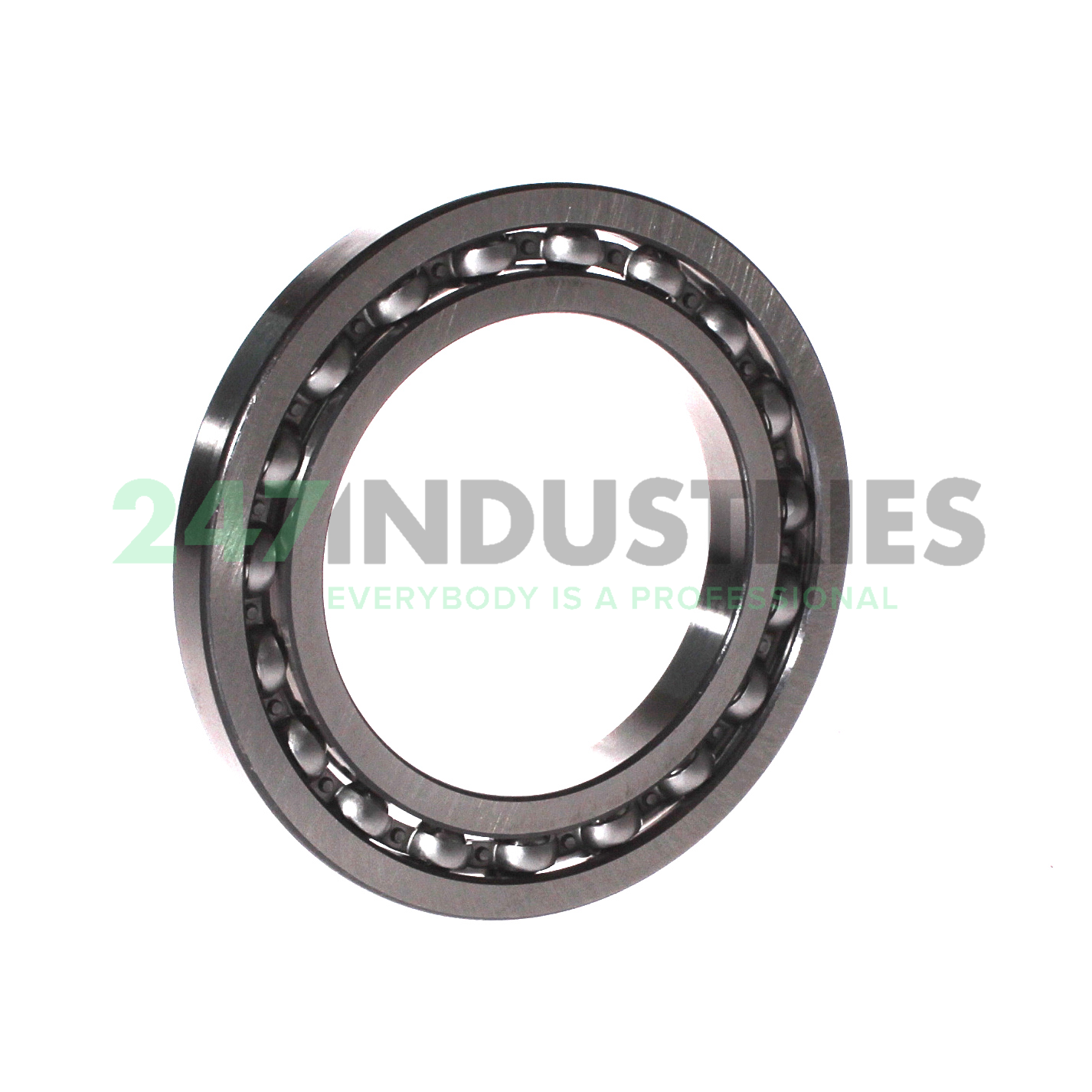

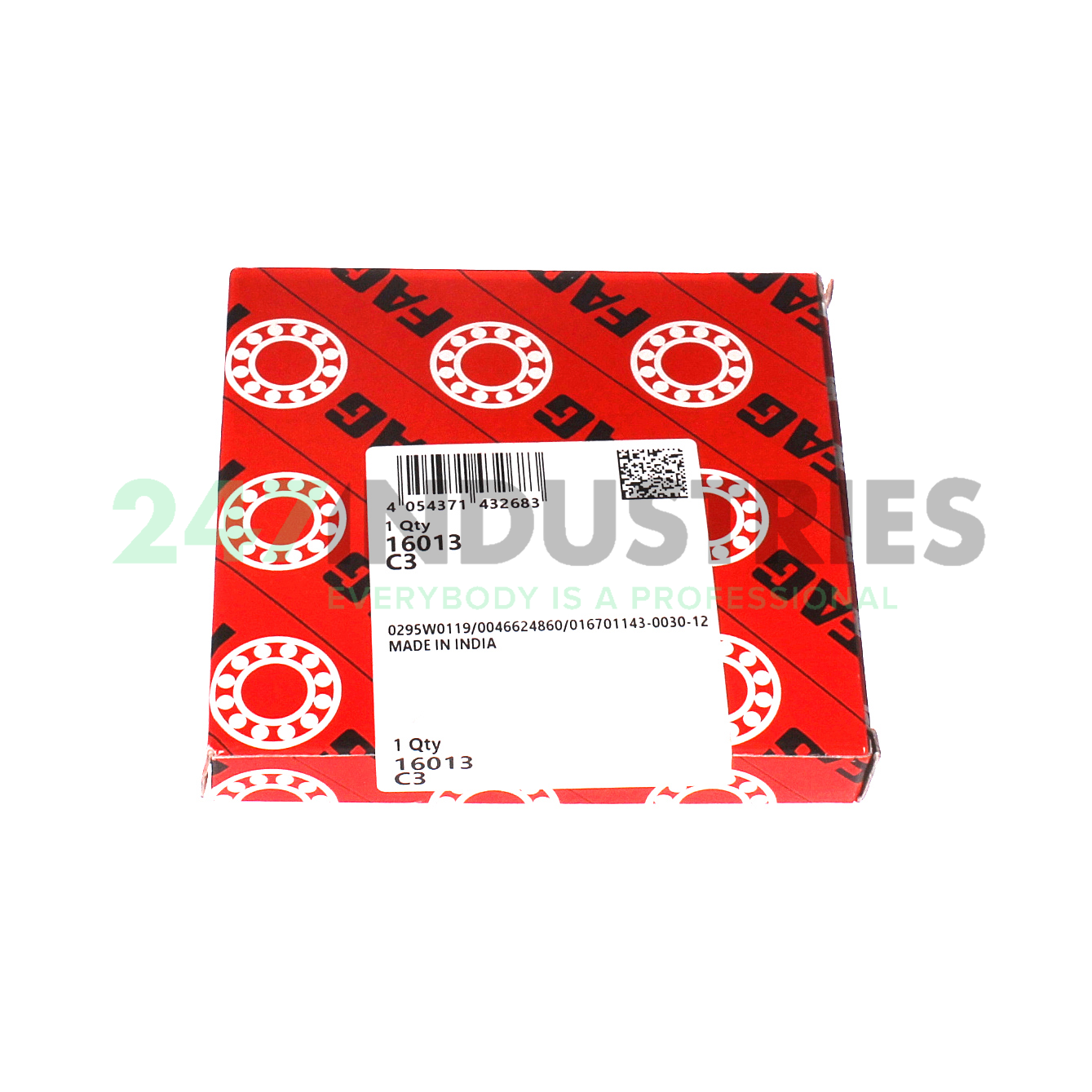

16013-C3 FAG

All dimensions

1. Inner (d) MM 65
2. Outer (D) MM 100
3. Width (B) MM 11
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.4331
7. Width (b) mm 11

Suffix description

1. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 25 pcs
2. Brand FAG
3. Item number 16013-C3 FAG
4. Also known as 0167011430030

5. EAN 4012801075817
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.3

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 19700
2. Radial Dynamic Load Rating Cr (N) 22500
3. Basic static load rating, radial (C 0r) "19700.0000"
4. Limiting speed (n G) 9900
5. Reference speed (n ϑr) 5300
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearings 160, main dimensions to DIN 625-1
