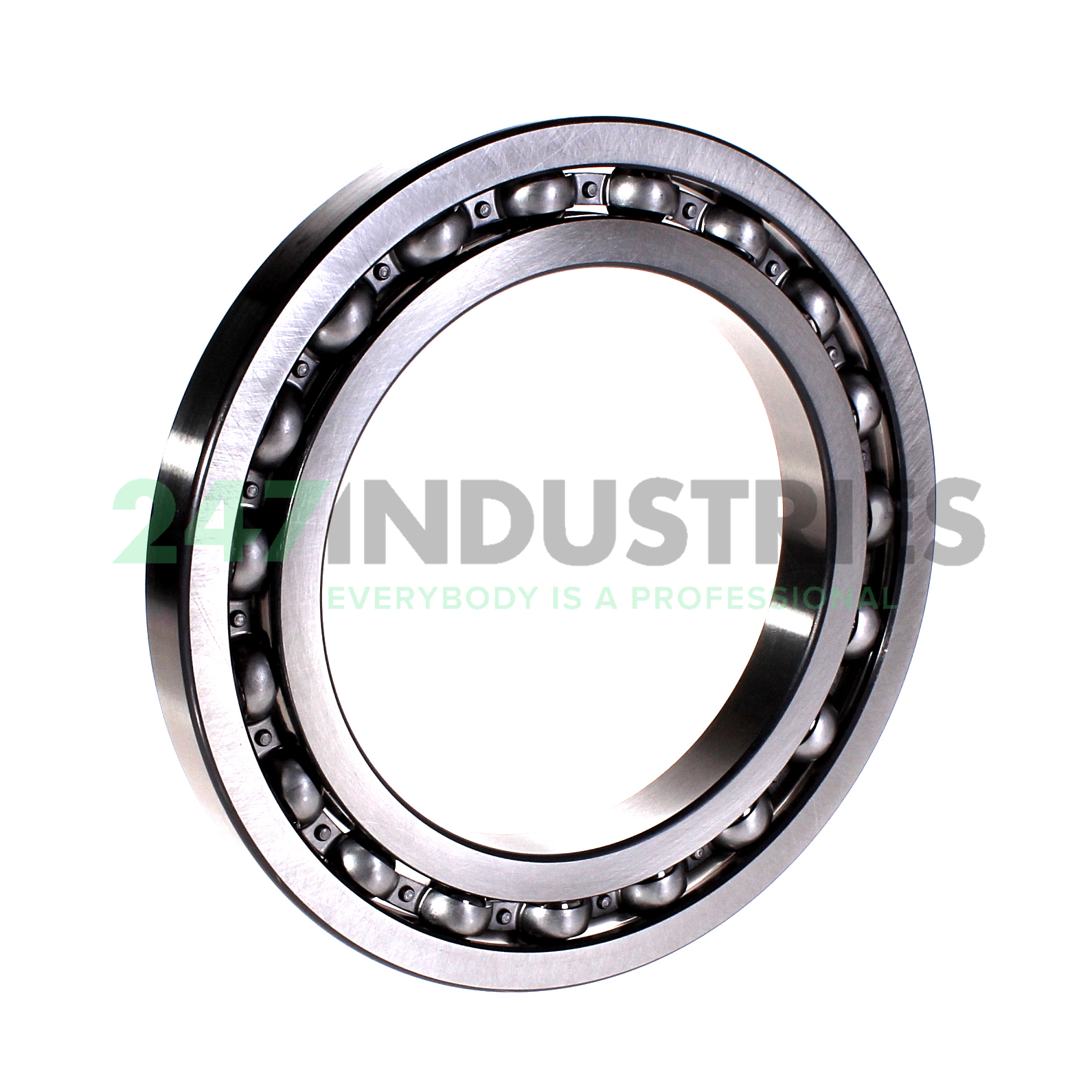

16024-P5 FAG

All dimensions

1. Inner (d) MM 120
2. Outer (D) MM 180
3. Width (B) MM 19
4. Inner (d) Inch 4.7244
5. Outer (D) Inch 7.0866
6. Width (B) Inch 0.748
7. Width (b) mm 19

Suffix description

1. P5 Dimensional And Running Accuracy To ISO Tolerance Class 5

Technical details

1. Availability 4 pcs
2. Brand FAG
3. Item number 16024-P5 FAG
4. Also known as 0190112450000

5. EAN 4012801270519
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.5602

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision P5 Precision (Higher than P6)
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 64000
2. Radial Dynamic Load Rating Cr (N) 65000
3. Basic static load rating, radial (C 0r) "64000.0000"
4. Limiting speed (n G) 5200
5. Reference speed (n ϑr) 3550
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearings 160, main dimensions to DIN 625-1
