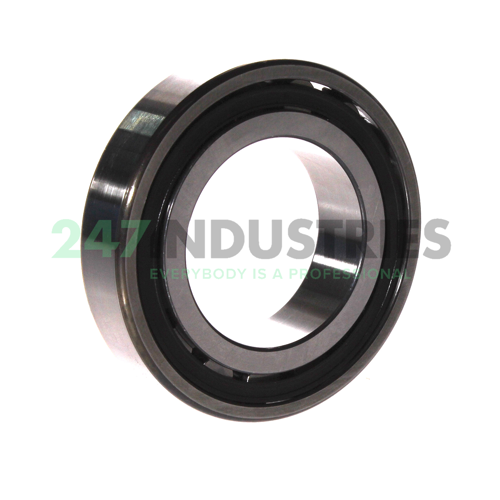

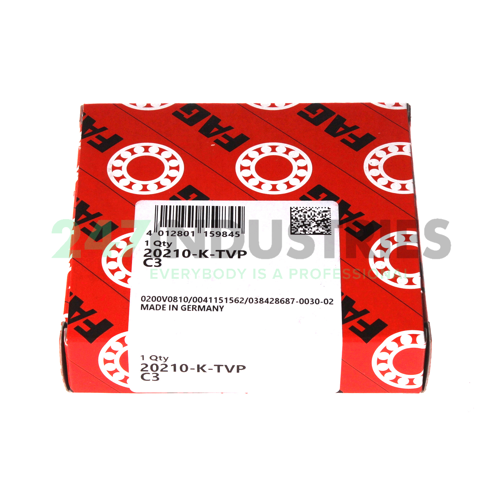

20210-K-TVP-C3 FAG

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 90
3. Width (B) MM 20
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.7874
7. Width (b) mm 20

Suffix description

1. K Tapered Bore, Taper 1:12
2. TVP Moulded Polyamide Window-Type Cage, Rolling Element Riding
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 9 pcs
2. Brand FAG
3. Item number 20210-K-TVP-C3 FAG
4. Also known as 0384286870030

5. EAN 4012801159845
6. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 0.49

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Lubrication Enhancement W - No Lubrication Groove or Holes
3. Seal No Seal
4. Cage Type P - Plastic Molded Cage
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 69000
2. Radial Dynamic Load Rating Cr (N) 59000
3. Basic static load rating, radial (C 0r) "69000.0000"
4. Limiting speed (n G) 7700
5. ECLASS number 23-05-09-12
6. ECLASS2 number 23-05-09-12
7. Medias description Barrel roller bearing 202..-K-TVP
