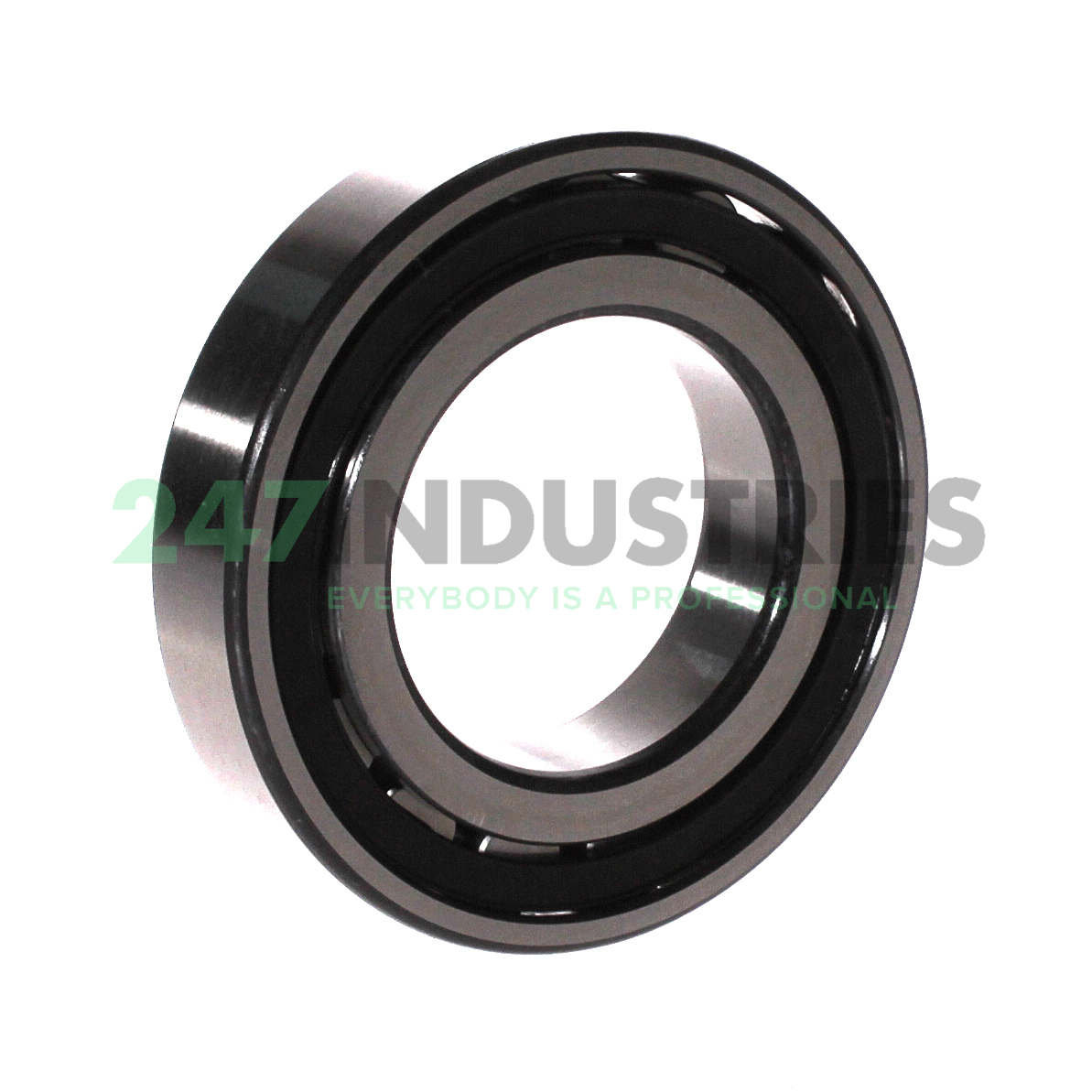

20211-TVP-C3 FAG

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 100
3. Width (B) MM 21
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.8268
7. Width (b) mm 21

Suffix description

1. TVP Moulded Polyamide Window-Type Cage, Rolling Element Riding
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 6 pcs
2. Brand FAG
3. Item number 20211-TVP-C3 FAG
4. Also known as 0167018280030

5. EAN 4012801286022
6. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 0.641

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W - No Lubrication Groove or Holes
3. Seal No Seal
4. Cage Type P - Plastic Molded Cage
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 85000
2. Radial Dynamic Load Rating Cr (N) 74000
3. Basic static load rating, radial (C 0r) "85000.0000"
4. Limiting speed (n G) 7100
5. ECLASS number 23-05-09-12
6. ECLASS2 number 23-05-09-12
7. Medias description Barrel roller bearings 202, main dimensions to DIN 635-1
