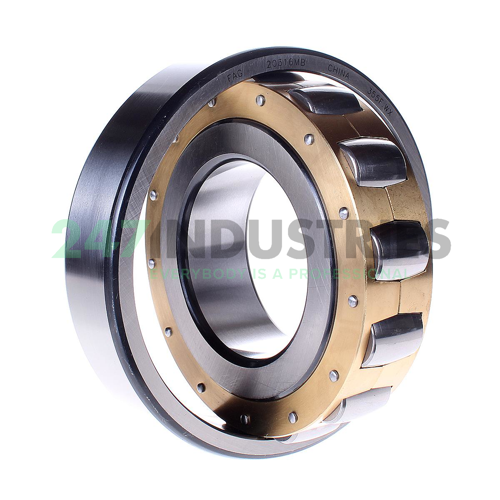

20316-MB FAG

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 170
3. Width (B) MM 39
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 6.6929
6. Width (B) Inch 1.5354
7. Width (b) mm 39

Suffix description

1. MB Solid Brass Cage, Guidance On Inner Ring

Technical details

1. Availability 2 pcs
2. Brand FAG
3. Item number 20316-MB FAG
4. Also known as 0167021660000

5. EAN 4012801185967
6. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 4.563

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W - No Lubrication Groove or Holes
3. Seal No Seal
4. Cage Type M - Brass Cage
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 285000
2. Radial Dynamic Load Rating Cr (N) 243000
3. Basic static load rating, radial (C 0r) "285000.0000"
4. Limiting speed (n G) 3950
5. ECLASS number 23-05-09-12
6. ECLASS2 number 23-05-09-12
7. Medias description Barrel roller bearings 203, main dimensions to DIN 635-1
