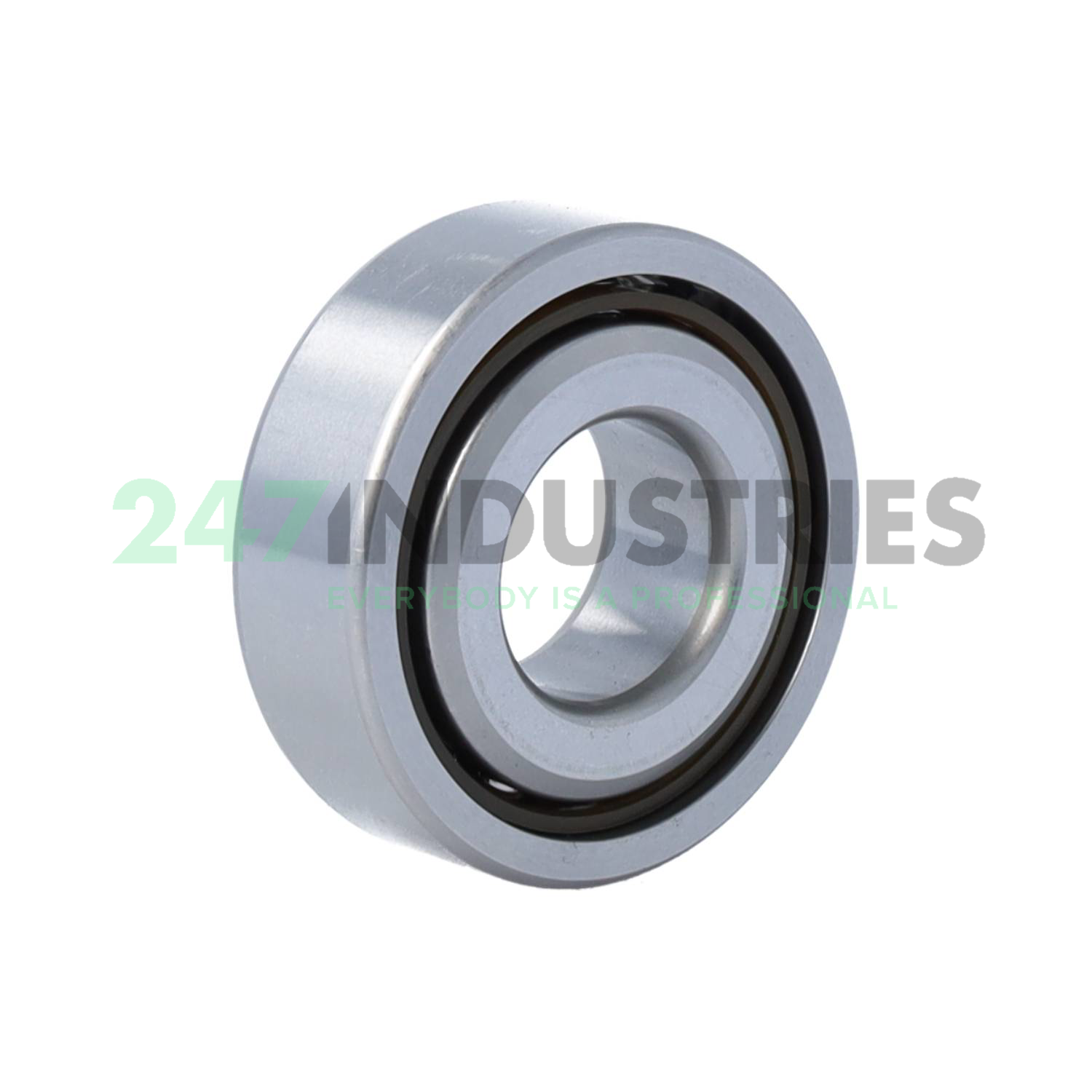

20TAC47CSUHPN7C NSK

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 47
3. Width (B) MM 15
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.5906

Suffix description

1. C 60° Contact Angle
2. SUH Single Universal Bearing, Heavy Preload
3. PN7C NSK Standard Accuracy Class 7C (Equivalent To Axial Runout Class 2)

Technical details

1. Availability 20 pcs
2. Brand NSK
3. Item number 20TAC47CSUHPN7C NSK
4. EAN 00029176975110
5. Category Angular Contact Thrust Ball Bearings, Single Direction

Weight and Dimensions

1. Weight (kg) 0.135

Product Properties

1. Cage Type S - Steel or Standard Cage
2. Precision Precision P2
