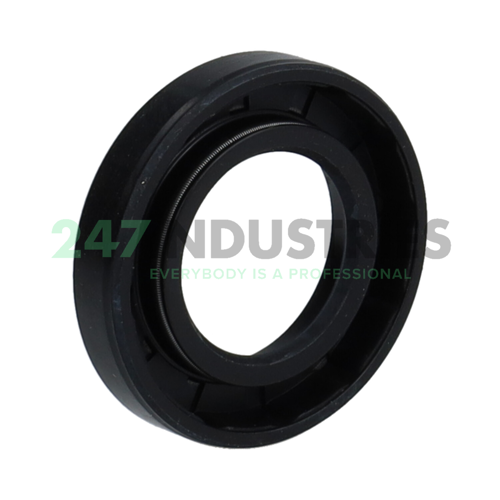

20X35X7 WA NBR Dichtomatic

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 35
3. Width (B) MM 7
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.378
6. Width (B) Inch 0.2756

Suffix description

1. NBR Standard Oil Seal According To DIN3760 / ISO6194 With An Elastomer Outside And A Metal Ring And Also A Spring And Lip. Standard Material Is NBR70, Colour Black, Spring Is According to DIN EN 10270-1, Ring Is According to DIN EN 10139. Temperature: -40 ~ 100°C

Technical details

1. Availability 19 pcs
2. Brand Dichtomatic
3. Item number 20X35X7 WA NBR Dichtomatic
4. Also known as 20X35X7

5. Category Oil-Seal Rubber Single Lip with Springring

Weight and Dimensions

1. Weight (kg) 0.01
