21308-E1-XL-TVPB FAG

Spherical roller bearing (X-life)

Stock
26 pcs in stock and ready for shipment
Brand FAG
Article number 21308-E1-XL-TVPB FAG
Inside diameter 40mm
Outside diameter 90mm
Width 23mm
Product description

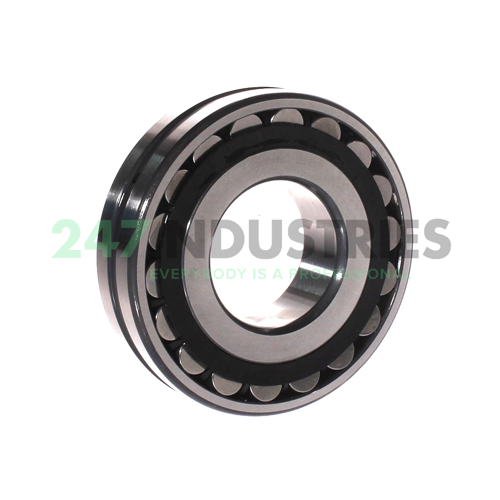

The 21308-E1-XL-TVPB FAG is a spherical roller bearing. This bearing type has a solid inner ring, which runs on two rows of symmetrical rollers in a solid outer ring. The outer ring has a concave, spherical raceway. This design compensates for any alignment errors and shaft deflections. Spherical roller bearings can withstand particularly high radial loads. Additionally, they can accommodate axial forces in both directions. These bearings are used in elevators, textile machines, food processing machines, cranes etc.

The 21308-E1-XL-TVPB FAG is an X-life type bearing. X-life bearings provide better performance than normal spherical roller bearings due to a special internal construction. Contact surfaces, steel grade and rolling bodies are of a higher quality. X-life bearings combine a higher load capacity with a longer service life. The bearings generate less heat and allow for higher speeds. Finally, X-life bearings allow for longer maintenance intervals compared to normal spherical roller bearings.

Read more Show less
Help with this product

Downloads and links

Similar to: 21308-E1-XL-TVPB FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 40
  2. Outer (D) MM 90
  3. Width (B) MM 23
  4. Inner (d) Inch 1.5748
  5. Outer (D) Inch 3.5433
  6. Width (B) Inch 0.9055
  7. Width (b) mm 23

Suffix description

  1. E1 Increased Capacity Design
  2. XL X-Life
  3. TVPB Solid Window Cage Made From Glass Fibre Reinforced Polyamide, Guidance On Inner Ring

Technical details

  1. Availability 26 pcs
  2. Brand FAG
  3. Item number 21308-E1-XL-TVPB FAG
  4. Also known as 0167022710000
    21308-E1-TVPB
  5. EAN 4026677805423
  6. Category Spherical Roller Bearing

Weight and Dimensions

  1. Weight (kg) 0.706

Product Properties

  1. Bore C - Cylindrical Bore
  2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
  3. Seal No Seal
  4. Cage Type P - Plastic Molded Cage
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  8. Vibrating Screen Execution Non Vibrating Screen Execution

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 107000
  2. Radial Dynamic Load Rating Cr (N) 109000
  3. Basic static load rating, radial (C 0r) "107000.0000"
  4. Limiting speed (n G) 9800
  5. Reference speed (n ϑr) 5200
  6. ECLASS number 23-05-09-11
  7. ECLASS2 number 23-05-09-11
  8. Medias description Spherical roller bearings 213..-E1, main dimensions to DIN 635-2
