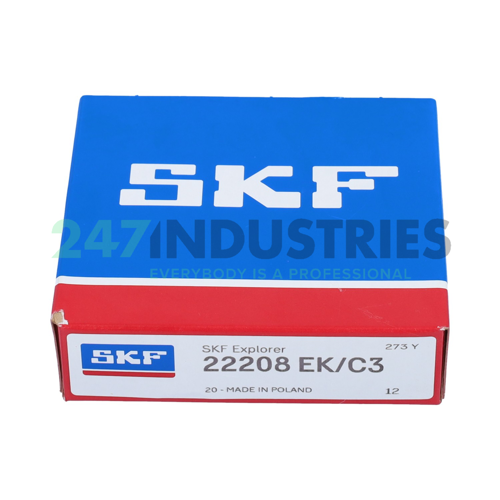

22208EK/C3 SKF

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 80
3. Width (B) MM 23
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.9055

Suffix description

1. E d ≤65mm, Two Window-Type Steel Cages, Flangeless Inner Ring And Guide Centered On The Inner Ring. When d >65 mm Same As <65mm But Guide Ring Centered On The Cages
2. K Tapered Bore, Taper 1:12
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 8 pcs on Wed 9 Oct
2. Brand SKF
3. Item number 22208EK/C3 SKF
4. EAN 7316576651939
5. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 0.48

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
