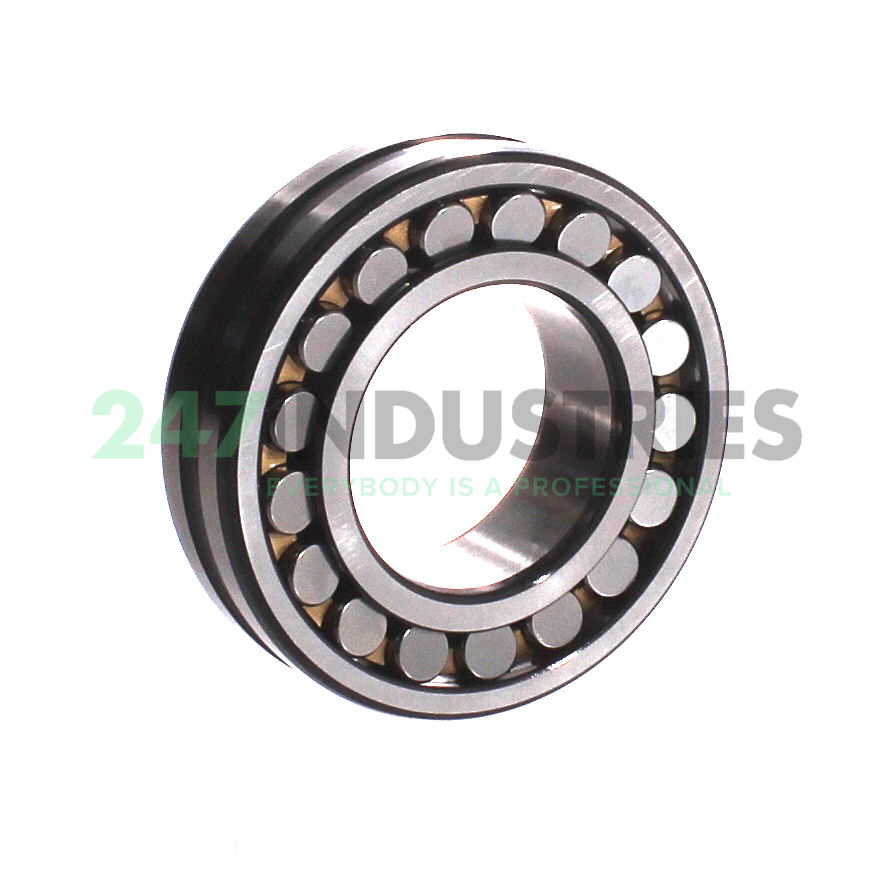

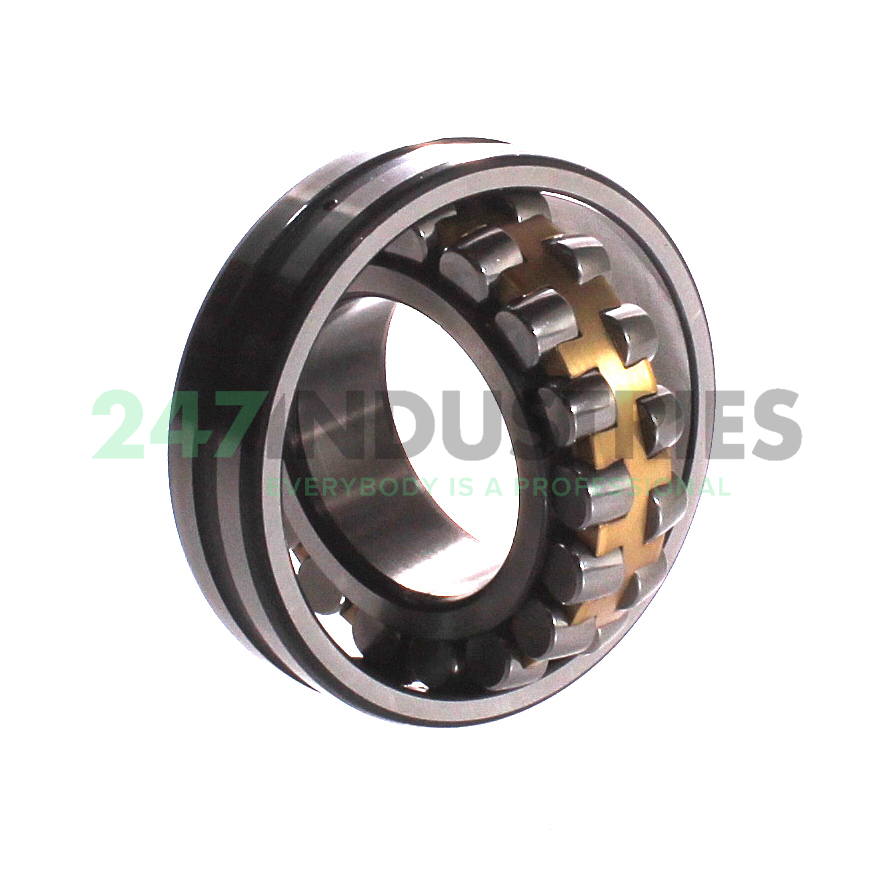

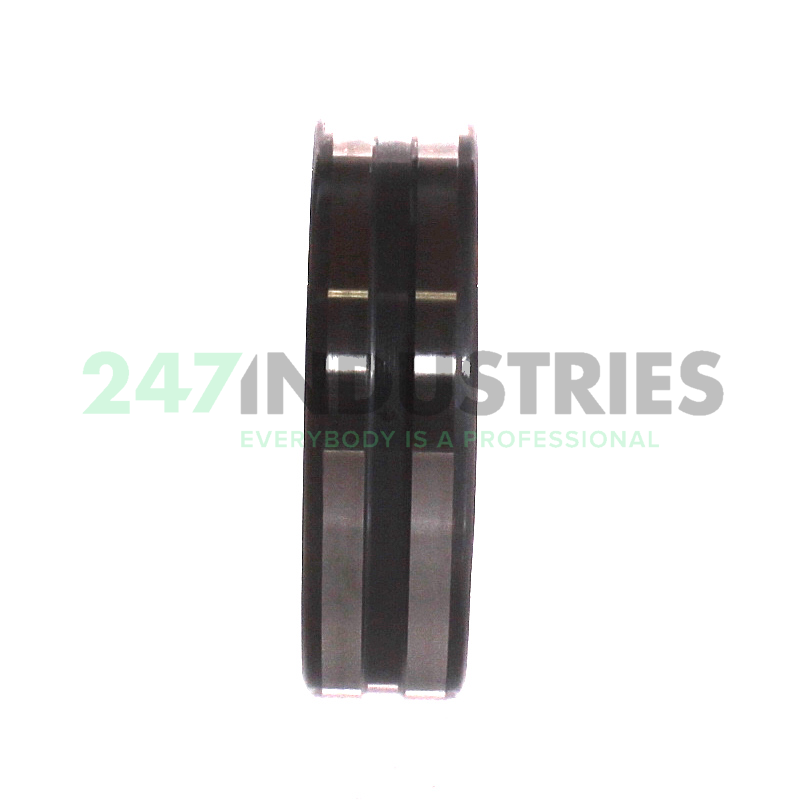

22209CAW33 ZWZ

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 85
3. Width (B) MM 23
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.3465
6. Width (B) Inch 0.9055

Suffix description

1. CA Bearings With Symmetrical Rollers And Retaining RIbs. The Cage Is A One-Piece, Double Pronged Machined Cage Of Brass
2. C3 Internal Clearance Larger Than Normal
3. W33 Lubrication Groove And Three Holes In Bearing Outer Ring

Technical details

1. Availability 0 pcs
2. Brand ZWZ
3. Item number 22209CAW33 ZWZ
4. Also known as 22209CA/W33

5. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 0.58

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type M - Brass Cage
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
