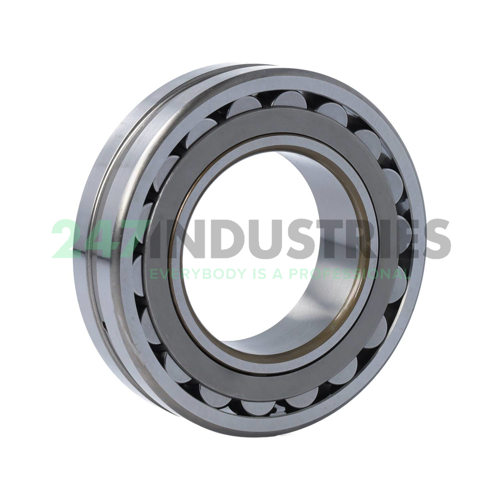

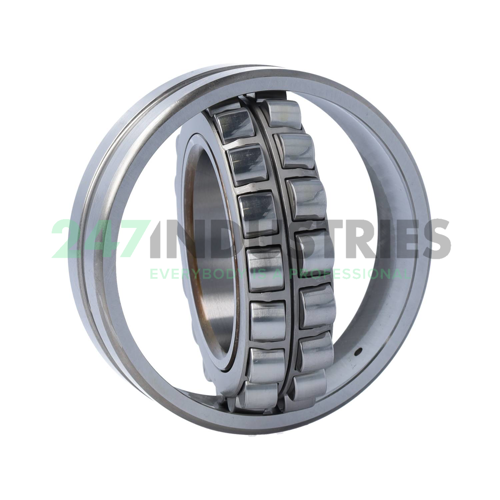

22211E/C3VQ335 SKF

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 100
3. Width (B) MM 25
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.9843

Suffix description

1. E d ≤65mm, Two Window-Type Steel Cages, Flangeless Inner Ring And Guide Centered On The Inner Ring. When d >65 mm Same As <65mm But Guide Ring Centered On The Cages
2. C3 Internal Clearance Larger Than Normal
3. VQ335 Variant Of Standard Design In Quality, Dimensions, Accuracy, Vibration Etc

Technical details

1. Availability 2 pcs
2. Brand SKF
3. Item number 22211E/C3VQ335 SKF
4. Also known as 22211E/C3

5. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 0.802

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision VQ - Dimensional And/Or Accuracy
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
