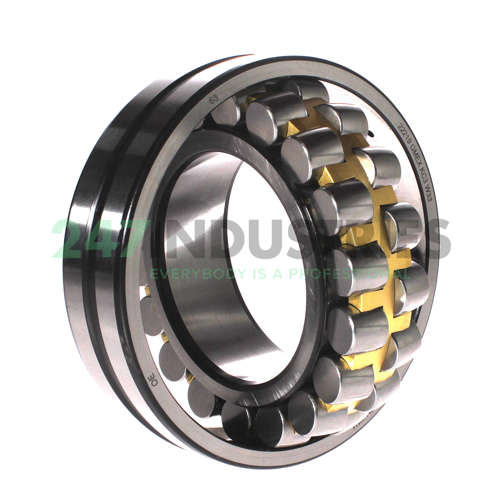

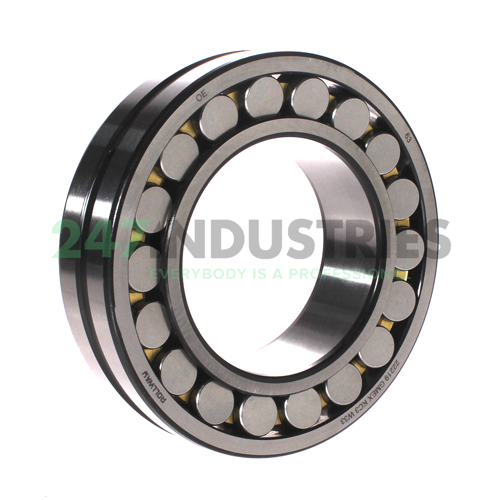

22219GMEX K C3 W33 Rollway

All dimensions

1. Inner (d) MM 95
2. Outer (D) MM 170
3. Width (B) MM 43
4. Inner (d) Inch 3.7402
5. Outer (D) Inch 6.6929
6. Width (B) Inch 1.6929

Suffix description

1. GMEX Improved Precision, Roundness And Surface Finish, Rings And Rollers Are Manufactured In High Grade ROL2 Steel, One Piece Robust Brass Cage, Guided On The Rollers
2. K Tapered Bore, Taper 1:12
3. C3 Internal Clearance Larger Than Normal
4. W33 Lubrication Groove And Three Holes In Bearing Outer Ring

Technical details

1. Availability 6 pcs
2. Brand Rollway
3. Item number 22219GMEX K C3 W33 Rollway
4. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 4.25

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type M - Brass Cage
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
