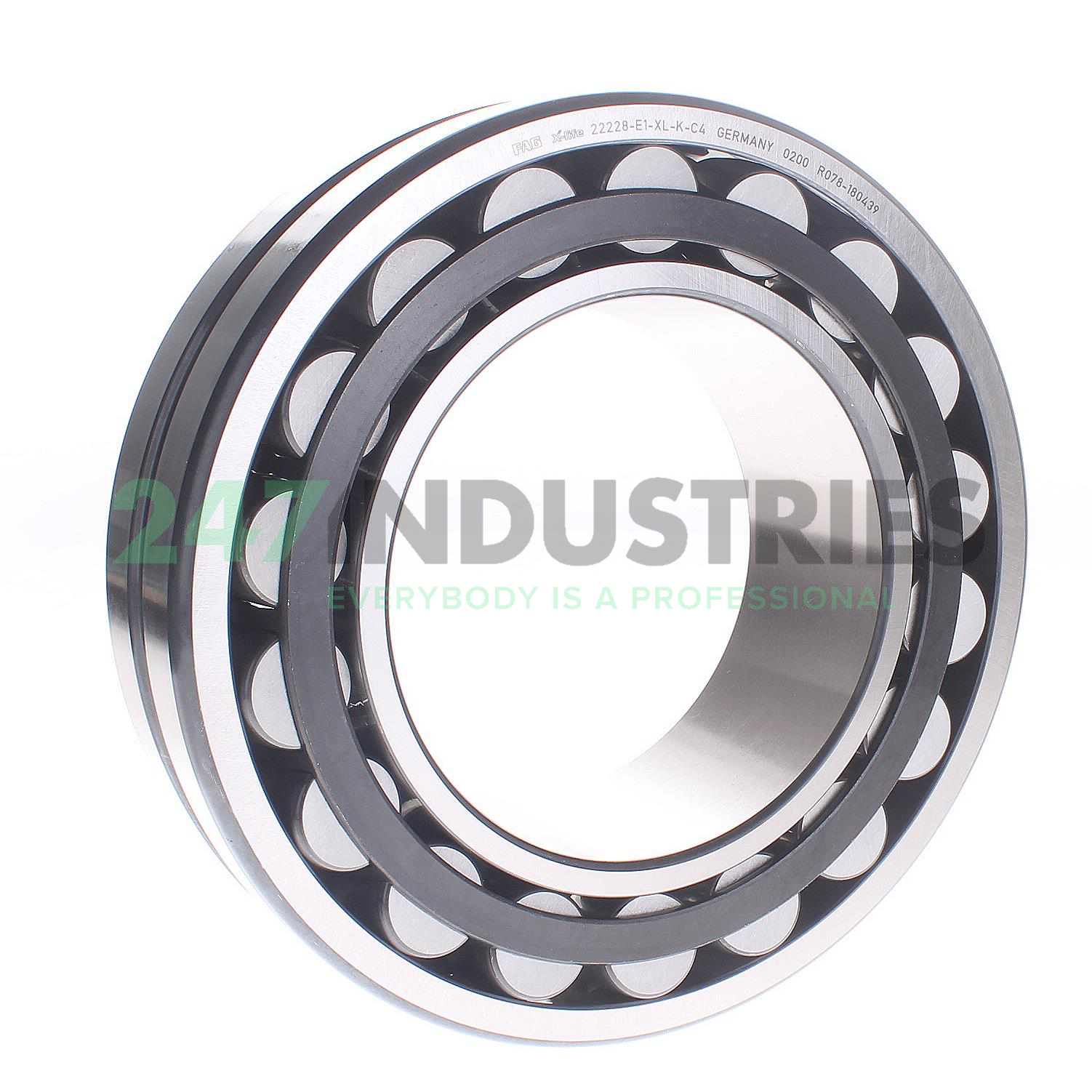

22228CKJ/C4W33 Neutral

All dimensions

1. Inner (d) MM 140
2. Outer (D) MM 250
3. Width (B) MM 68
4. Inner (d) Inch 5.5118
5. Outer (D) Inch 9.8425
6. Width (B) Inch 2.6772

Suffix description

1. C Two Window-Type Steel Cages, Flangeless Inner Ring And Guide Ring Centered On The Inner Ring
2. K Tapered Bore, Taper 1:12
3. J Pressed Cage Of Unhardened Sheet Steel
4. C4 Bearing Internal Clearance Greater Than C3
5. W33 Lubrication Groove And Three Holes In Bearing Outer Ring

Technical details

1. Availability 0 pcs
2. Brand Neutral
3. Item number 22228CKJ/C4W33 Neutral
4. Also known as 22228CCK/C4W33
   22228-E1-K-C4
   22228-E1-XL-K-C4
   22228KEJW33C4

5. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 13.1

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
