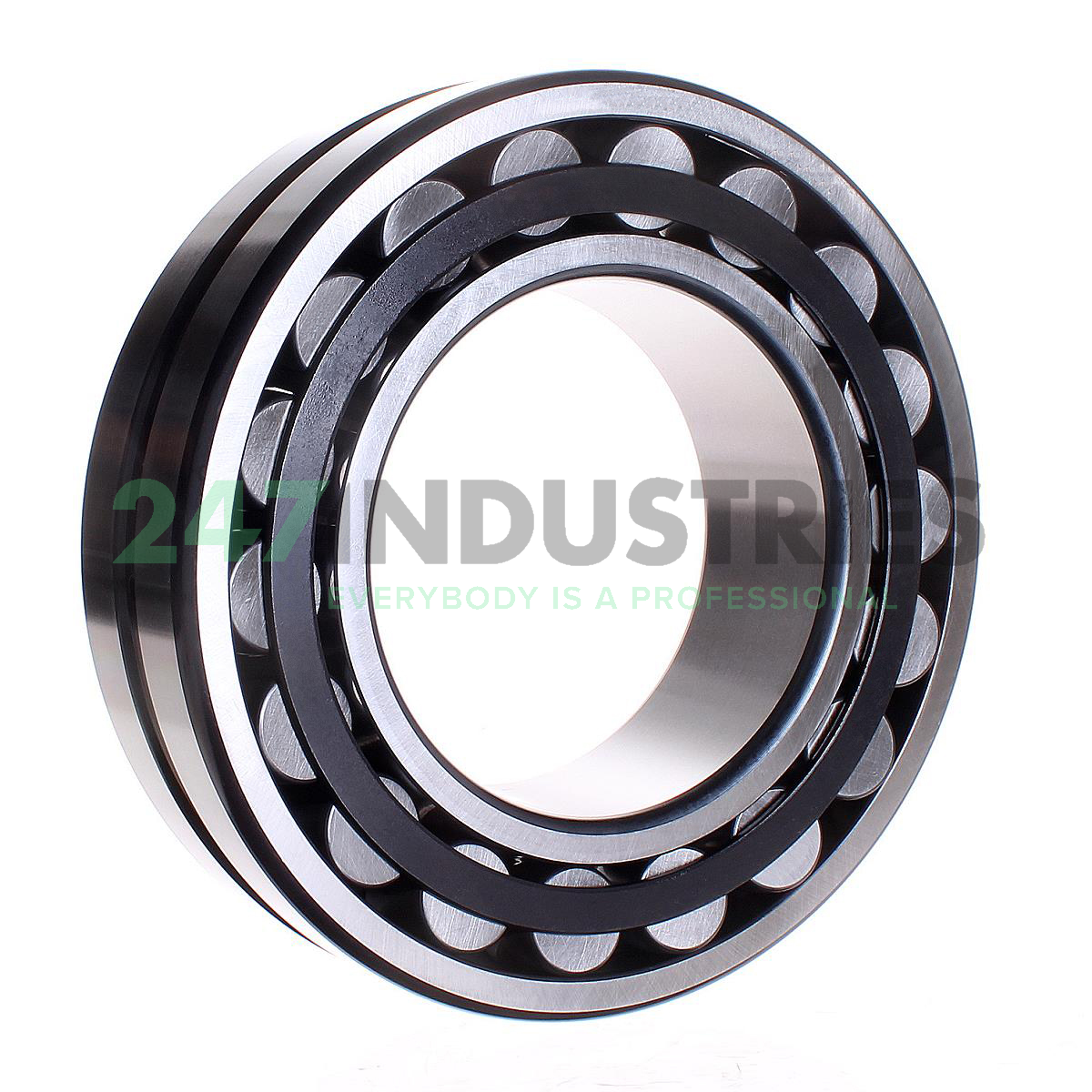

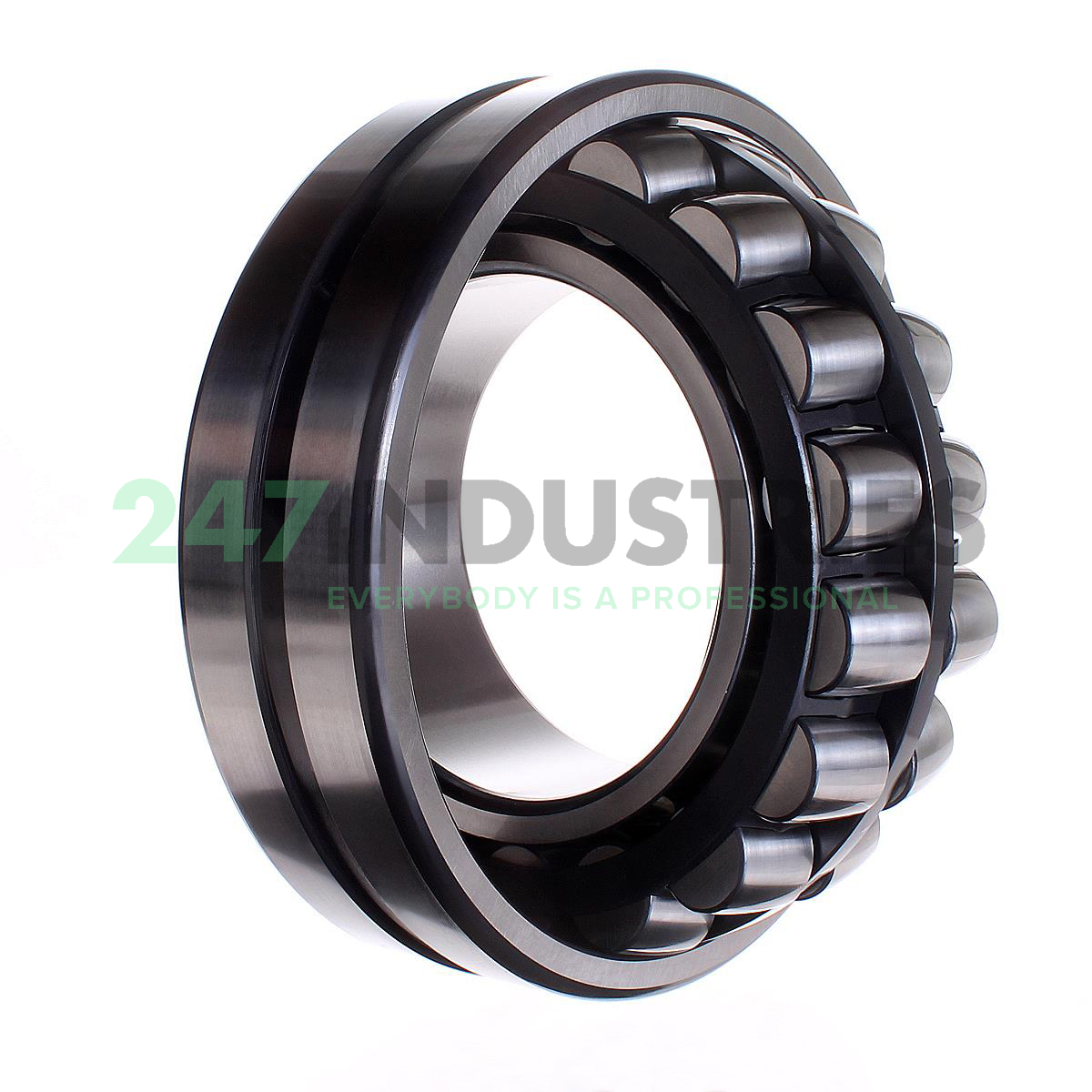

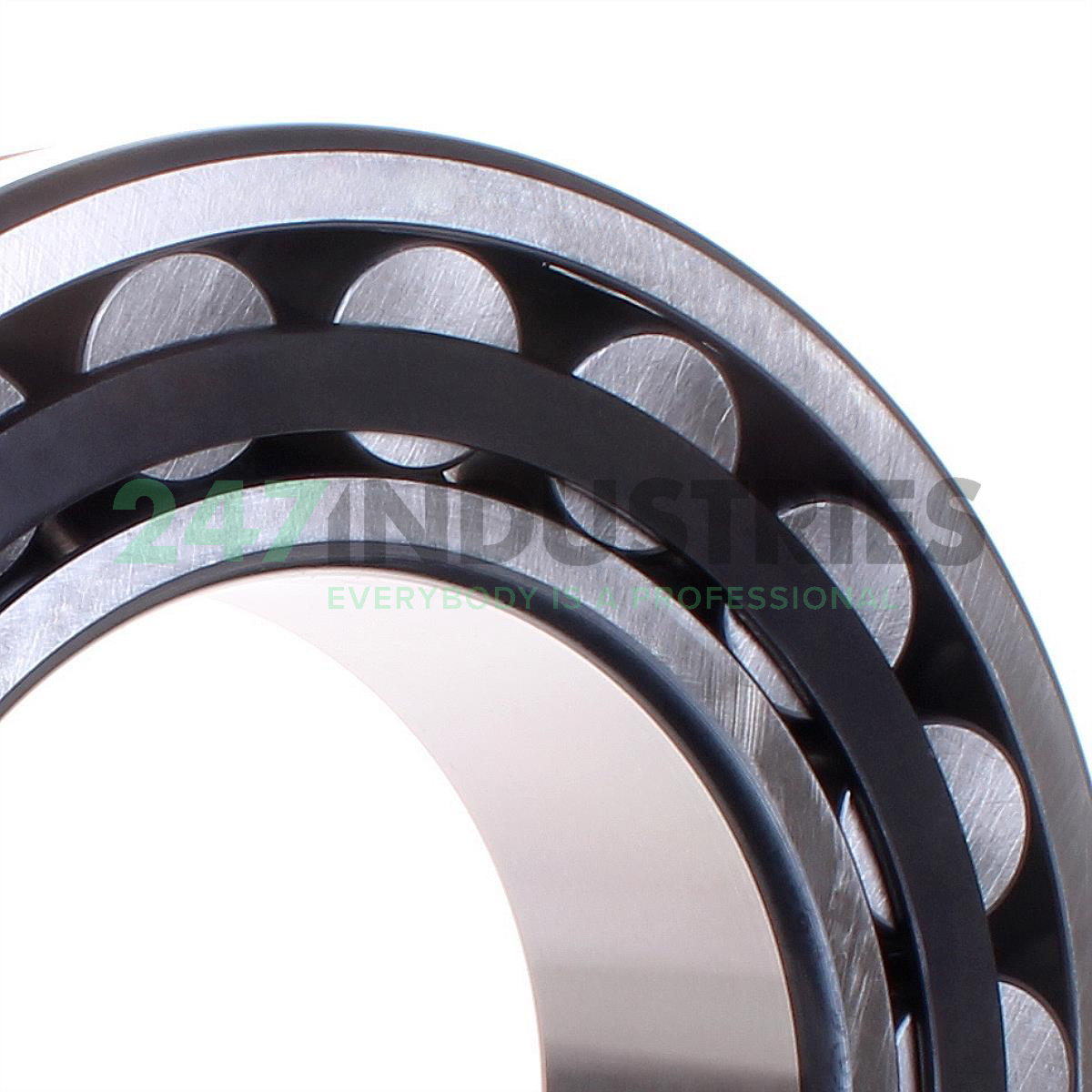

22228EJW33 RHP

All dimensions

1. Inner (d) MM 140
2. Outer (D) MM 250
3. Width (B) MM 68
4. Inner (d) Inch 5.5118
5. Outer (D) Inch 9.8425
6. Width (B) Inch 2.6772

Suffix description

1. E Increased Load Capacity
2. J Pressed Steel Cage

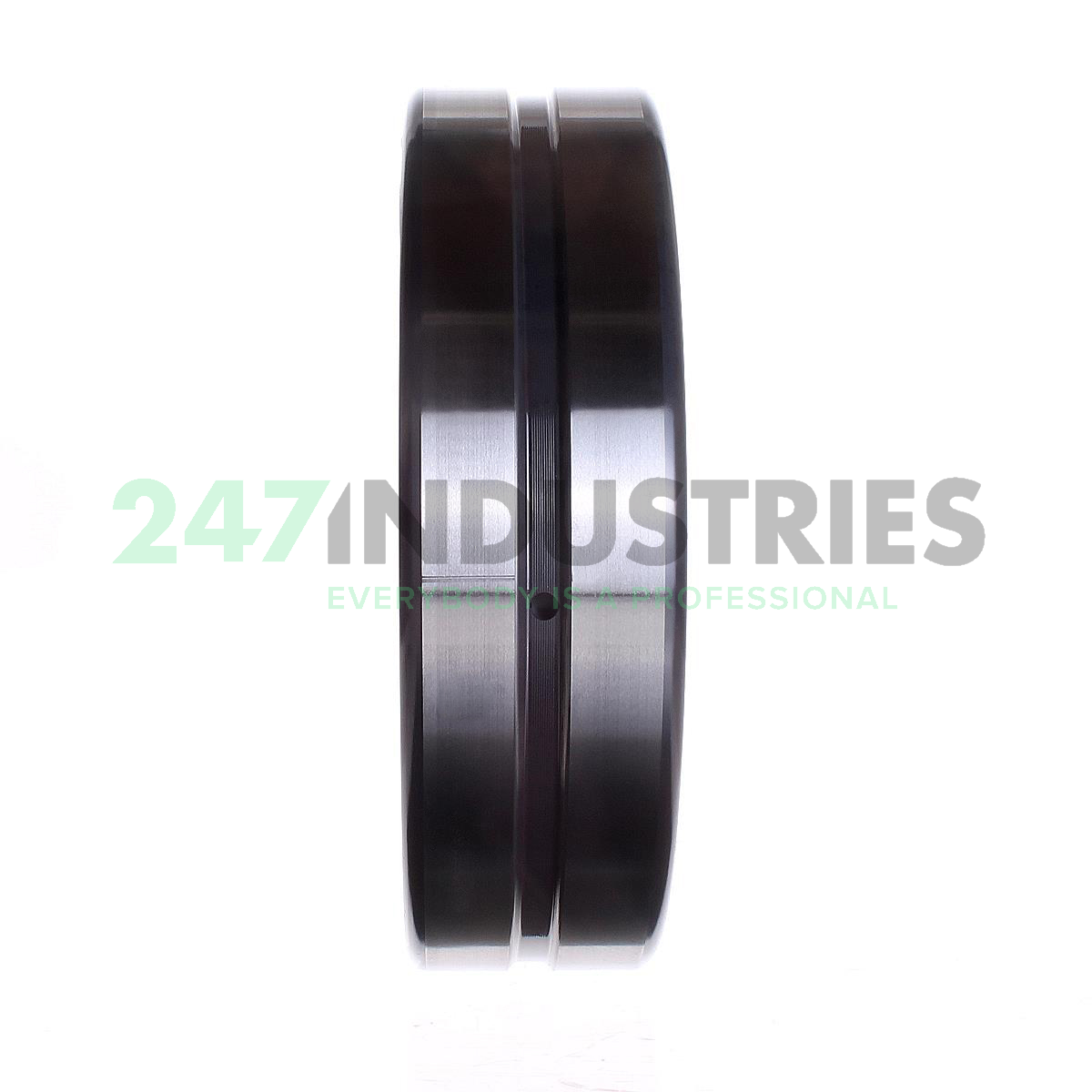

3. W33 Lubrication Groove And Three Holes In Bearing Outer Ring

Technical details

1. Availability 2 pcs
2. Brand RHP
3. Item number 22228EJW33 RHP
4. Also known as 22228CC/W33
   22228-E1
   22228-E1-XL
   22228EJW33

5. EAN 00747023091867
6. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 13.4

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
