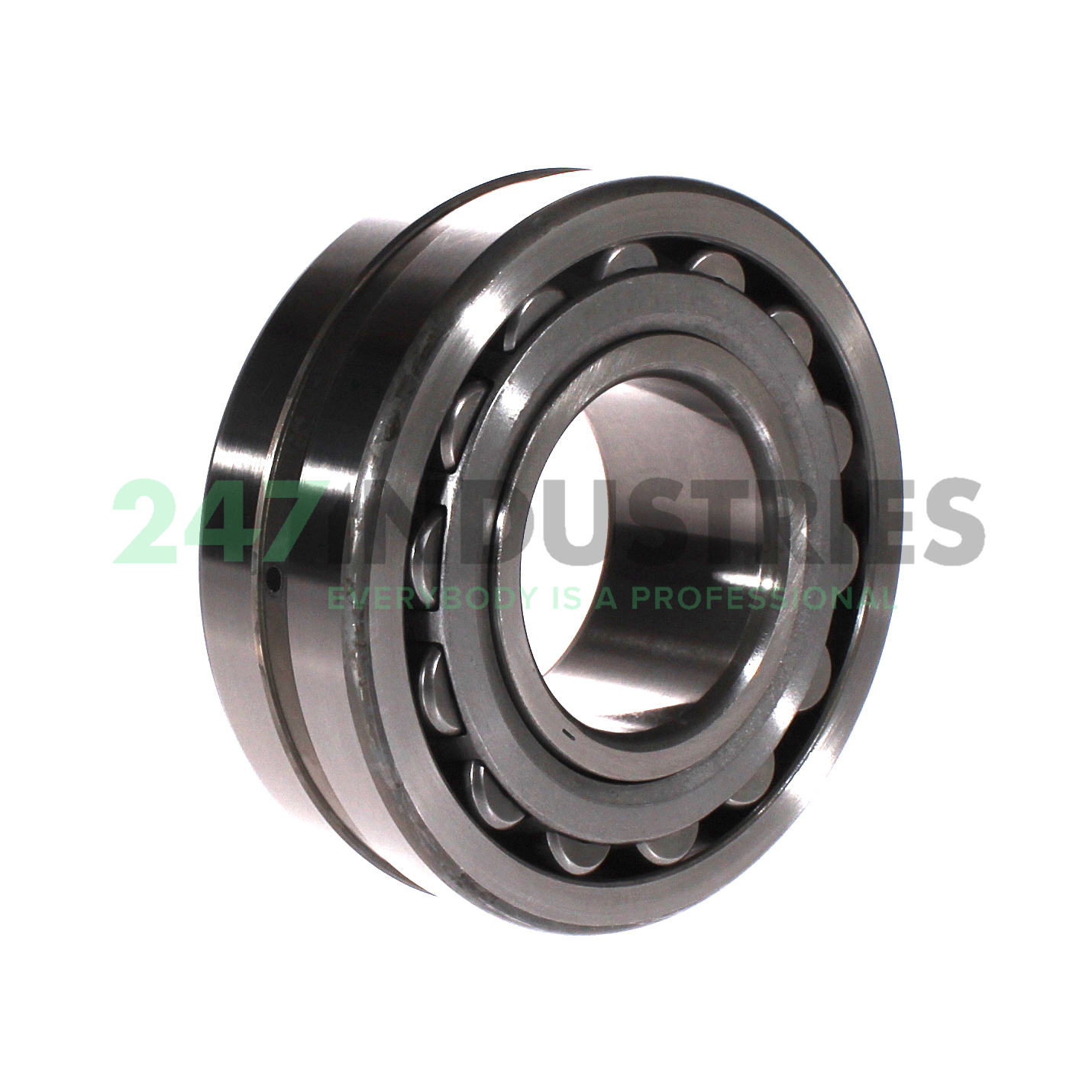

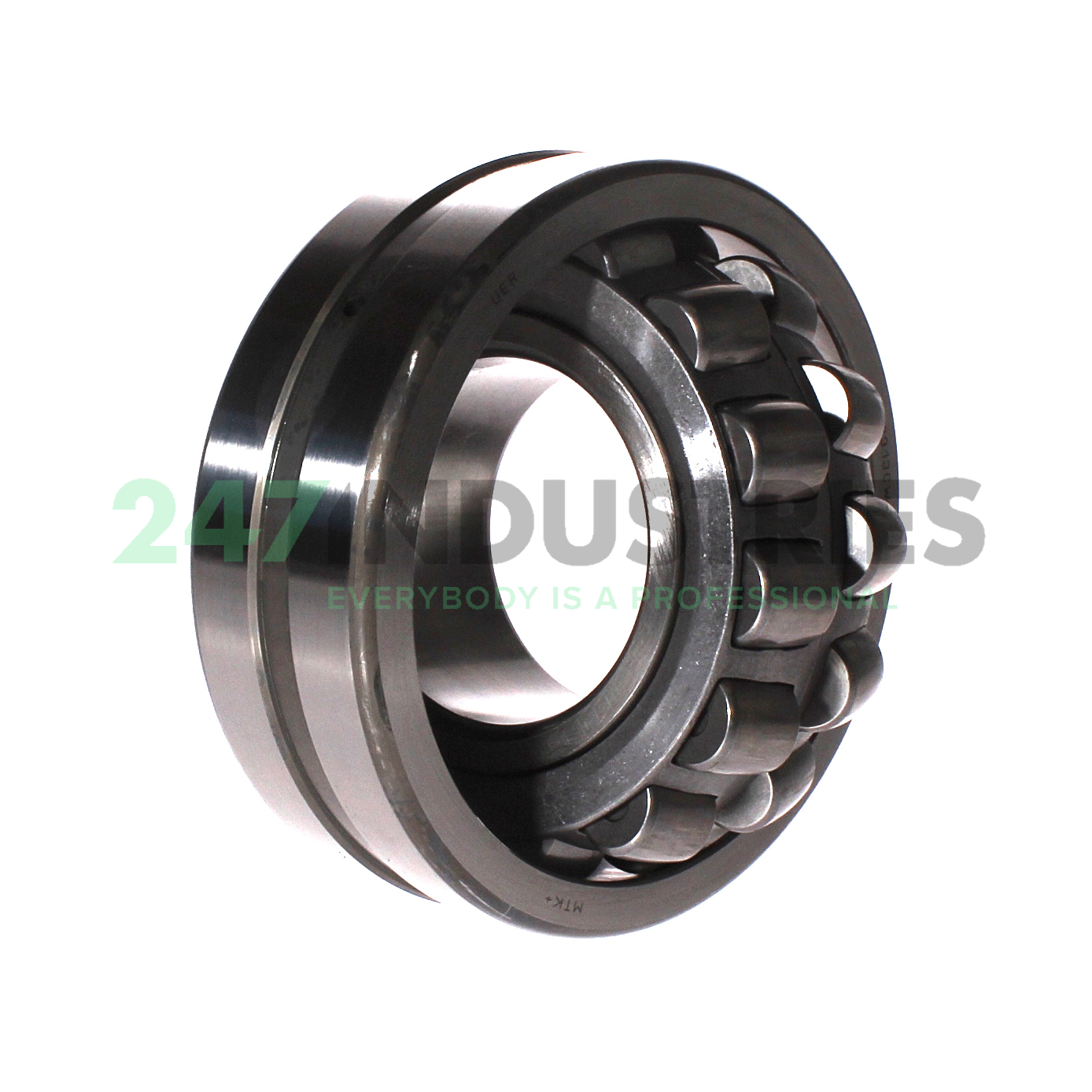

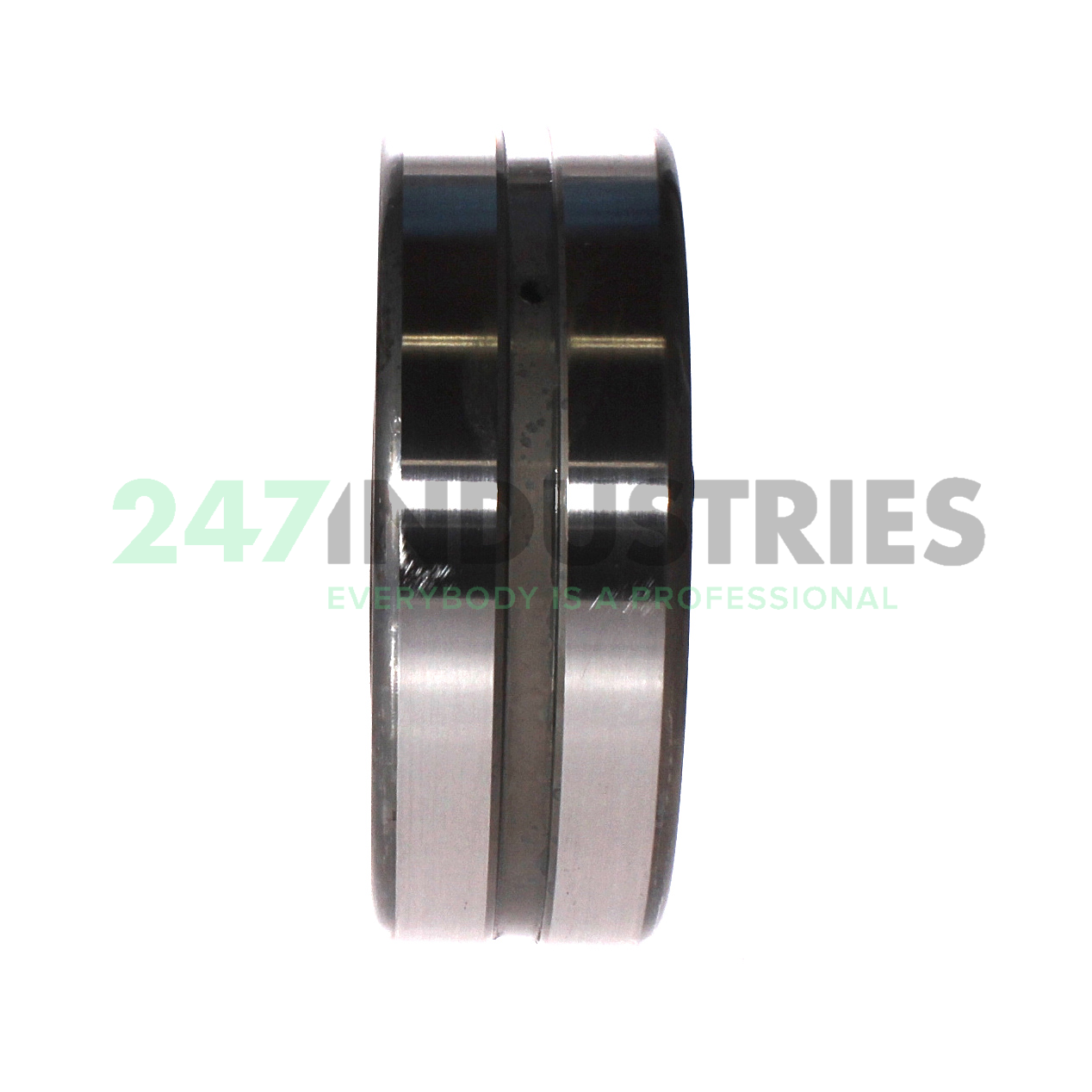

22313CW33 MTK

All dimensions

1. Inner (d) MM 65
2. Outer (D) MM 140
3. Width (B) MM 48
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 5.5118
6. Width (B) Inch 1.8898

Suffix description

1. C Two Window-Type Steel Cages, Flangeless Inner Ring And Guide Ring Centered On The Inner Ring
2. W33 Lubrication Groove And Three Holes In Bearing Outer Ring

Technical details

1. Availability 0 pcs
2. Brand MTK
3. Item number 22313CW33 MTK
4. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 3.41

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
