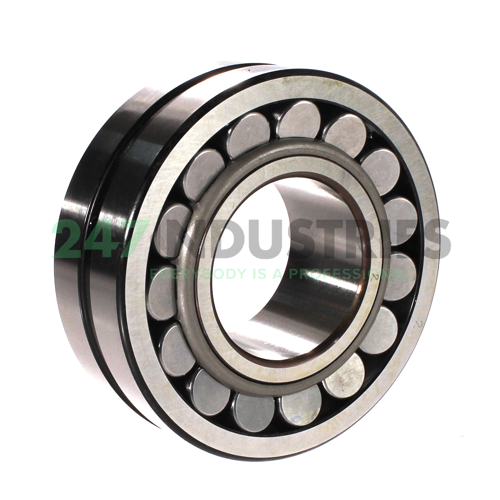

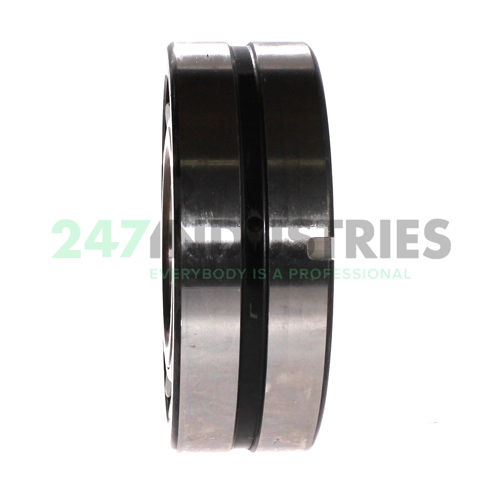

22313EN1 SKF

All dimensions

1. Inner (d) MM 65
2. Outer (D) MM 140
3. Width (B) MM 48
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 5.5118
6. Width (B) Inch 1.8898

Suffix description

1. E d ≤65mm, Two Window-Type Steel Cages, Flangeless Inner Ring And Guide Centered On The Inner Ring. When d >65 mm Same As <65mm But Guide Ring Centered On The Cages
2. N1 One Locating Slot (Notch) In One Outer Ring Side Face Or Housing Washer

Technical details

1. Availability 2 pcs
2. Brand SKF
3. Item number 22313EN1 SKF
4. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 3.41

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play Cn Normal Internal Play
6. Precision N1
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
