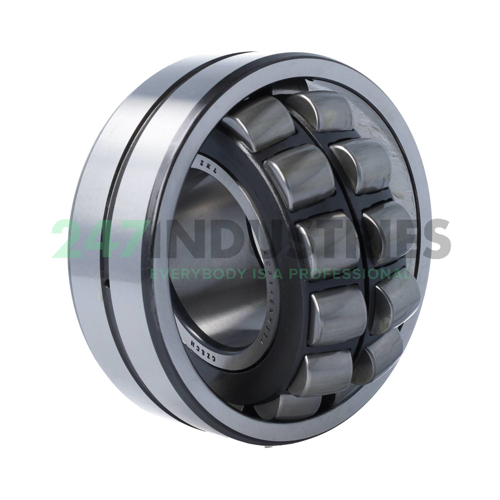

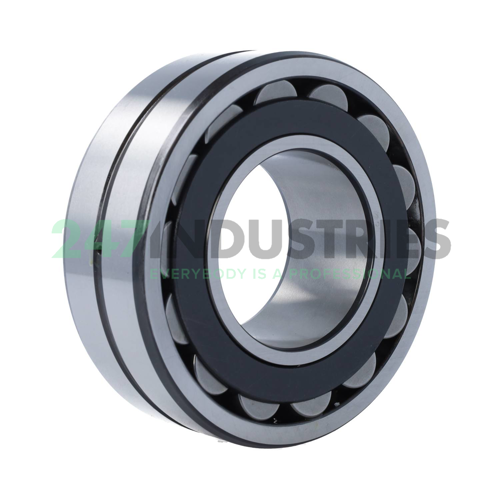

22314EK W33 J ZKL

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 150
3. Width (B) MM 51
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 5.9055
6. Width (B) Inch 2.0079

Suffix description

1. E Double Row Spherical Roller Bearing With Higher Load Rating
2. K Tapered Bore, Taper 1:12
3. W33 Lubrication Groove And Three Holes In Bearing Outer Ring
4. J Pressed Sheet Steel Cage Guided On The Outer Diameter (M Profile)

Technical details

1. Availability 9 pcs
2. Brand ZKL
3. Item number 22314EK W33 J ZKL
4. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 4

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
