22322E/C3 SKF

Spherical roller bearing

Stock	6 pcs available
Brand	SKF
Article number	22322E/C3 SKF
Inside diameter	110mm
Outside diameter	240mm
Width	80mm

Product description

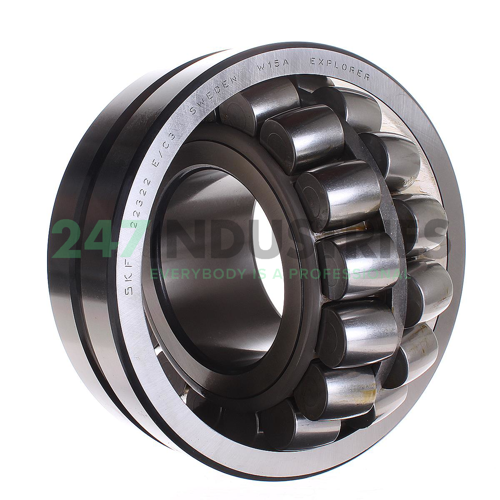

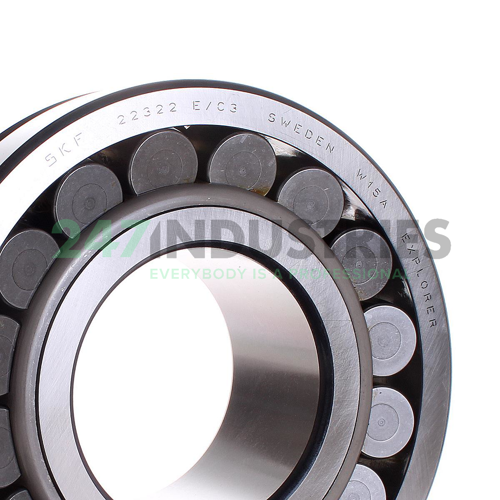

The 22322E/C3 SKF is a spherical roller bearing with an open design. This bearing type has a solid inner ring, which runs on two rows of symmetrical rollers in a solid outer ring. The outer ring has a concave, spherical raceway. This design compensates for any alignment errors and shaft deflections. Spherical roller bearings can withstand particularly high radial loads. Additionally, they can accommodate axial forces in both directions. These bearings are used in elevators, textile machines, food processing machines, cranes etc.

Email us at: help@247industries.com Response within 24h

Similar to: 22322E/C3 SKF

Loading similair products

Product specifications

Inside diameter 110mm
Outside diameter 240mm
Width 80mm

All dimensions

Inner (d) MM 110
Outer (D) MM 240
Width (B) MM 80
Inner (d) Inch 4.3307
Outer (D) Inch 9.4488
Width (B) Inch 3.1496

Suffix description

E d ≤65mm, Two Window-Type Steel Cages, Flangeless Inner Ring And Guide Centered On The Inner Ring. When d >65 mm Same As <65mm But Guide Ring Centered On The Cages
C3 Internal Clearance Larger Than Normal
