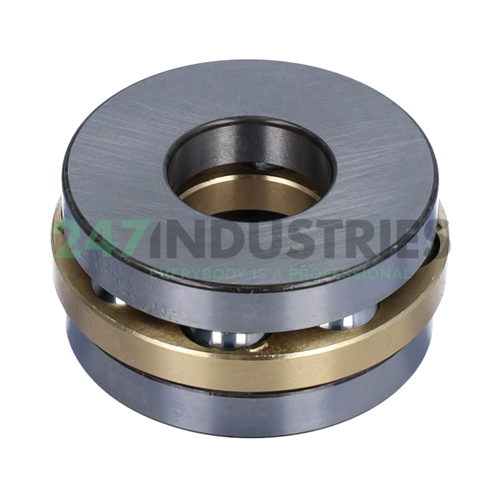

Single-direction thrust ball bearing
| Stock |
|
| Brand | SKF |

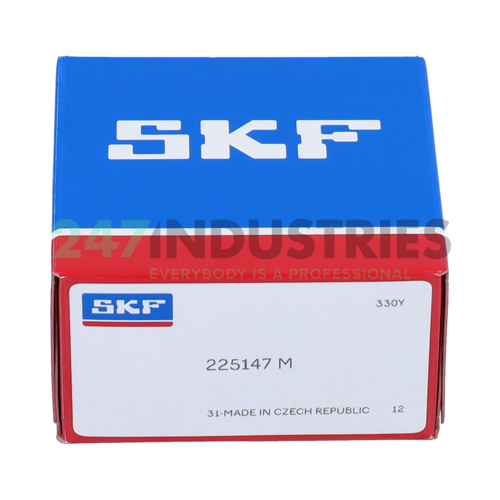

| Article number | 225147M SKF |
| Inside diameter | 25mm |
| Outside diameter | 58mm |
| Width | 29,81mm |
The 225147M SKF belongs to the single direction thrust ball bearings, also called ball thrust bearings or axial deep groove ball bearings. These bearings consist of a shaft ring, a housing ring and a ball and cage assembly. Thrust ball bearings have an open design. The balls make them suitable for high rotational speeds. Single direction thrust ball bearings can only be loaded axially in one direction. A shaft can be locked in one direction this way. Radially, they must not be loaded.

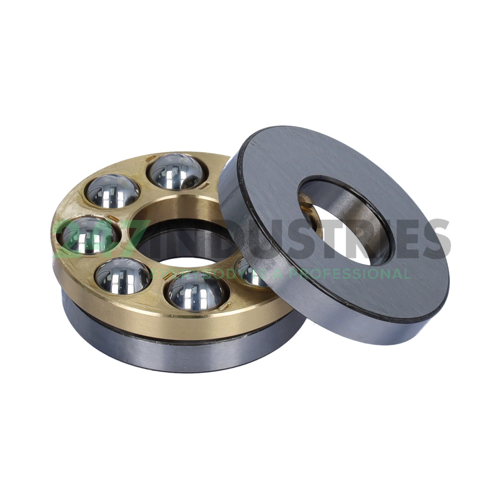

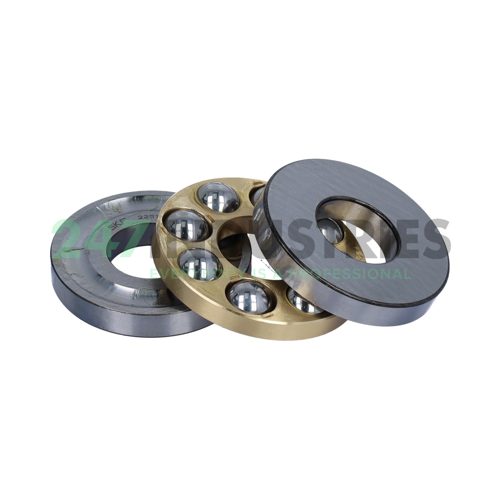

As thrust ball bearings can be disassembled, the components can easily be mounted separately. Be careful not to mix up the shaft and housing ring when you are assembling the bearing. The shaft ring is attached to the shaft. This ring rotates with the shaft. The housing ring has a slightly larger bore diameter, allowing the shaft to pass with some clearance.
