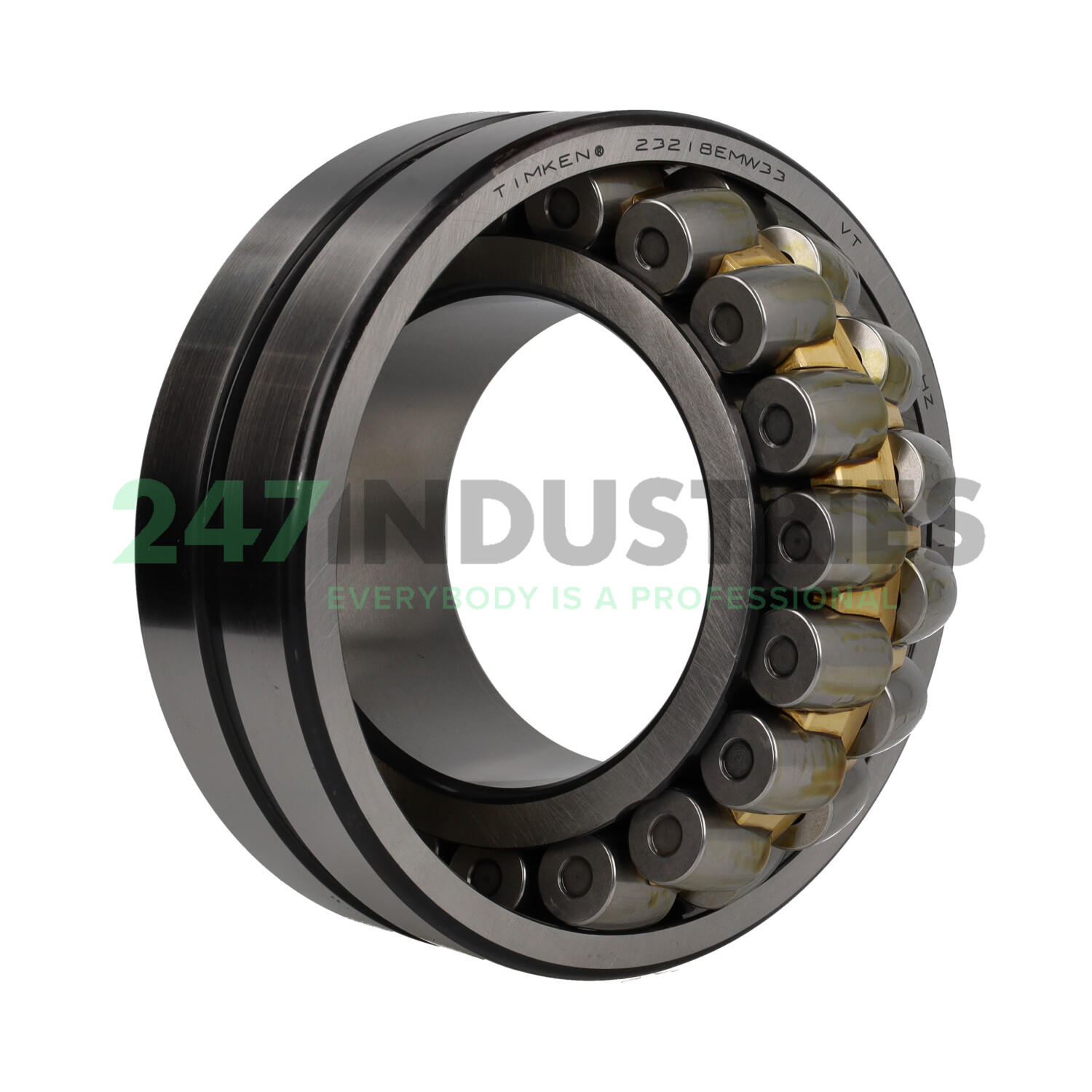

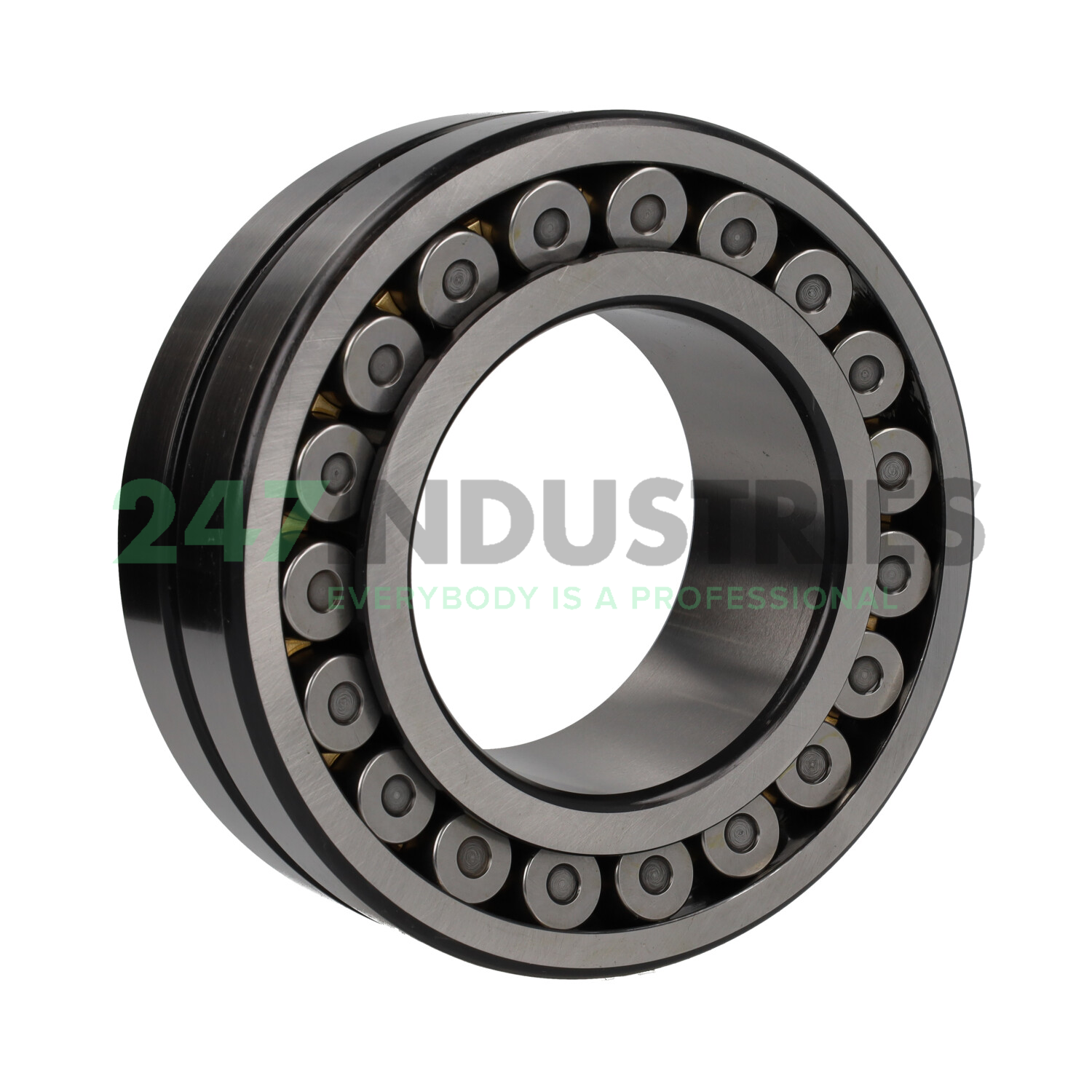

23218EMW33 Timken

All dimensions

1. Inner (d) MM 90
2. Outer (D) MM 160
3. Width (B) MM 52,4
4. Inner (d) Inch 3.5433
5. Outer (D) Inch 6.2992
6. Width (B) Inch 2.063

Suffix description

1. E Increased Load Capacity
2. M Machined Brass Cage, Located On The Rolling Elements
3. W33 Lubrication Groove And Three Holes In Bearing Outer Ring

Technical details

1. Availability 3 pcs
2. Brand Timken
3. Item number 23218EMW33 Timken
4. Also known as 190020833

5. EAN 0087796231863
6. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 4.46

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type M - Brass Cage
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
