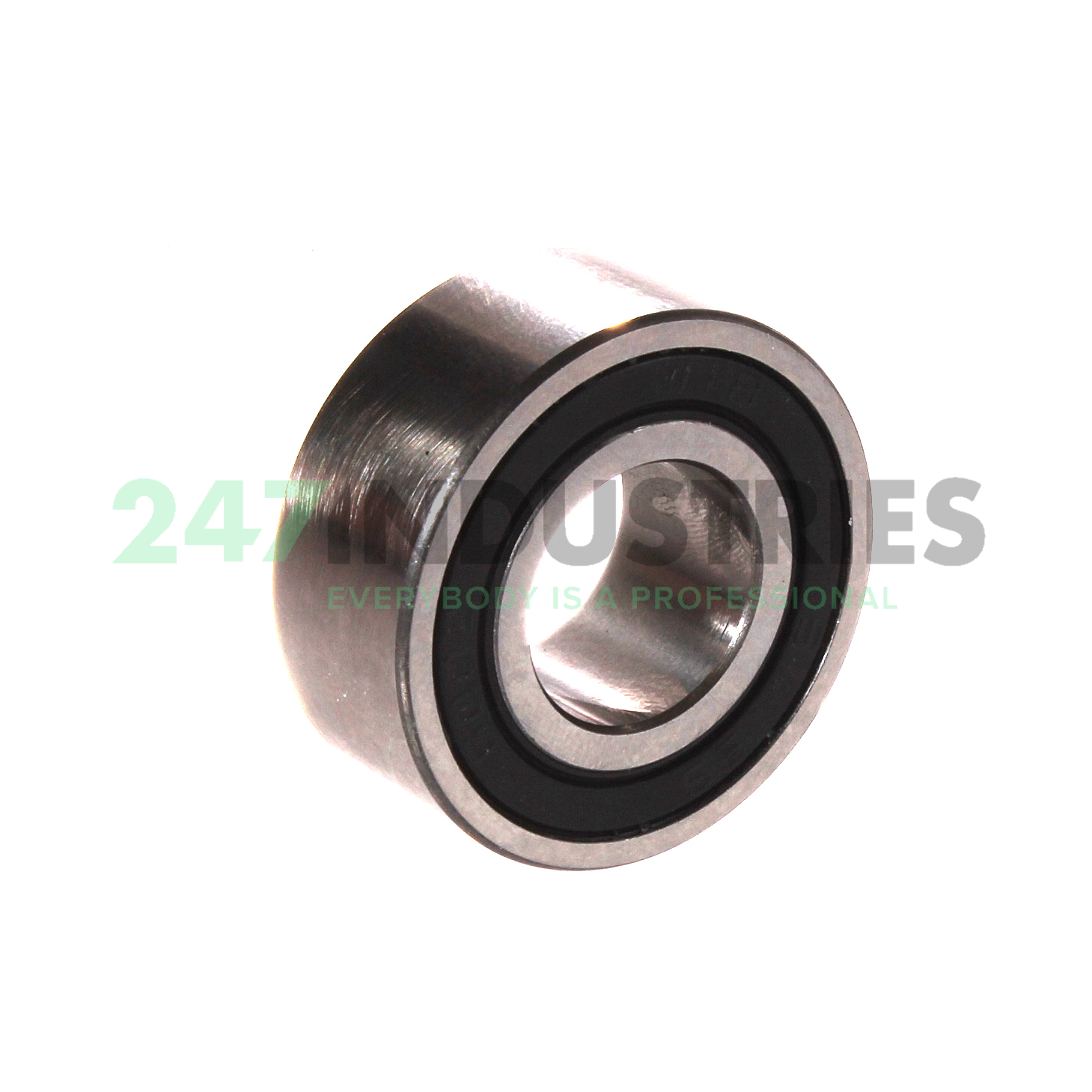

3002 2RS T9H WIB

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 32
3. Width (B) MM 13
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.2598
6. Width (B) Inch 0.5118

Suffix description

1. 2RS Lip Seal At Both Sides Of The Bearing, Axial Fitting
2. T9H Glass-Fibre Reinforced (25%) Thermoplastic Polyamide PA 6.6, 1-Piece, Operating Temperature 120°C

Technical details

1. Availability 1 pc on Wed 13 Nov
2. Brand WIB
3. Item number 3002 2RS T9H WIB
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.036

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
