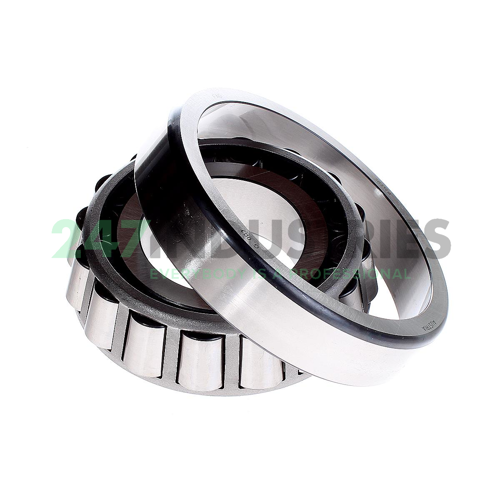

30314A FAG

Single-row tapered roller bearing

Stock
2 pcs in stock and ready for shipment
Brand FAG
Article number 30314A FAG
Inside diameter 70mm
Outside diameter 150mm
Width 38mm
Product description

The 30314A FAG is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical. This design allows these versatile bearings to accommodate combined loads. They support high radial and axial loads (in one direction). The greater the contact angle, the greater the axial load capacity.

The 30314A FAG is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consists of an inner ring with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of the internal construction, they must be mounted in mirror-image arrangement together with a second tapered roller bearing. Paired bearing sets can also be applied in X, O, or tandem arrangements.

Read more Show less
Help with this product

Downloads and links

Similar to: 30314A FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 70
  2. Outer (D) MM 150
  3. Width (B) MM 38
  4. Inner (d) Inch 2.7559
  5. Outer (D) Inch 5.9055
  6. Width (B) Inch 1.4961

Suffix description

  1. A Internal Design Modification

Technical details

  1. Availability 2 pcs
  2. Brand FAG
  3. Item number 30314A FAG
  4. Category Tapered Roller Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 3.08

Product Properties

  1. Precision Standard Precision
