3201A-2RS1TN9 SKF

Double row angular contact ball bearing

Stock
1 pc in stock and ready for shipment
Brand SKF
Article number 3201A-2RS1TN9 SKF
Inside diameter 12mm
Outside diameter 32mm
Width 15,9mm
Product description

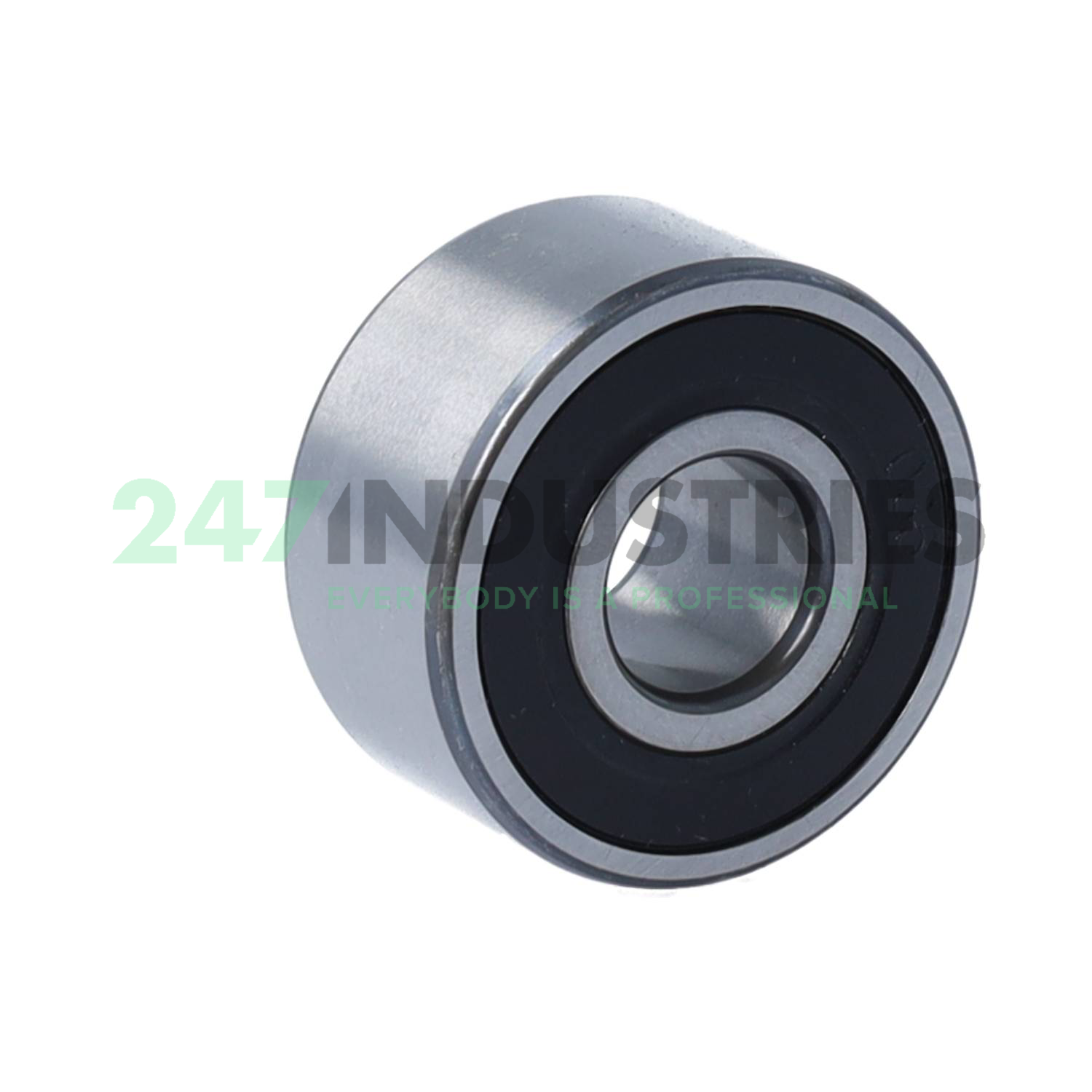

The 3201A-2RS1TN9 SKF is a double-row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single-row angular contact ball bearings in O-arrangement but is slightly narrower. Double-row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

Help with this product

Similar to: 3201A-2RS1TN9 SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 12
  2. Outer (D) MM 32
  3. Width (B) MM 15,9
  4. Inner (d) Inch 0.4724
  5. Outer (D) Inch 1.2598
  6. Width (B) Inch 0.626

Suffix description

  1. A Double Row Angular Contact Ball Bearing Without Filling Slots
  2. 2RS1 Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing
  3. TN9 Injection Moulded Snap-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centered

Technical details

  1. Availability 1 pc
  2. Brand SKF
  3. Item number 3201A-2RS1TN9 SKF
  4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 0.057

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal 2RS - Rubber Seal on Two Sides
  3. Cage Type P - Plastic Molded Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Split Inner ring / Outer ring Standard
