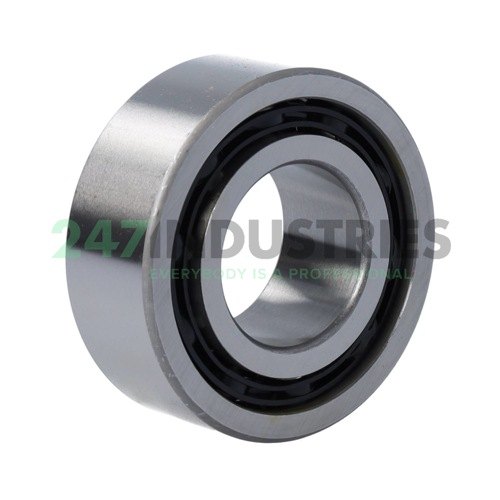

3207B.TV NKE

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 72
3. Width (B) MM 27
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.8346
6. Width (B) Inch 1.063

Suffix description

1. B Design Without Filling Slots Have Contact Angles Of 32°
2. TV Polyamide Cage

Technical details

1. Availability 0 pcs
2. Brand NKE
3. Item number 3207B.TV NKE
4. Also known as 3207ATN1
   3207ATN9
   3207-BD-TVH
   3207-BD-XL-TVH
   3207BTNG

5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.47

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
