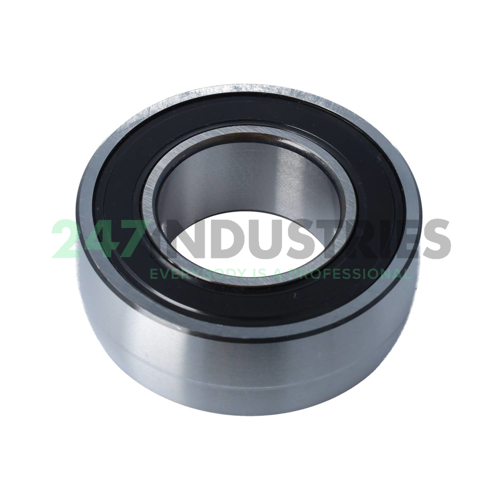

3209-NPP-B-AH02 INA

All dimensions

1. Outer (D) MM 85
2. Width (B) MM 30,2
3. Outer (D) Inch 3.3465
4. Width (B) Inch 1.189

Suffix description

1. NPP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)
2. B Bearing With Spherical Outer Ring
3. AH02 Different Inner Diameter From Basic Part Number

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number 3209-NPP-B-AH02 INA
4. Also known as 0004313200000

5. EAN 4047643177122
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.64

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. ECLASS number 23-05-08-03
2. ECLASS2 number 23-05-08-03

Downloads and links

1. Link to manufacturer Link to manufacturer
