3214-B-TVH-C3 FAG

€ 160,32 ex VAT
€ 193,98 incl. VAT
€ 193,98 incl. VAT
€ 160,32 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

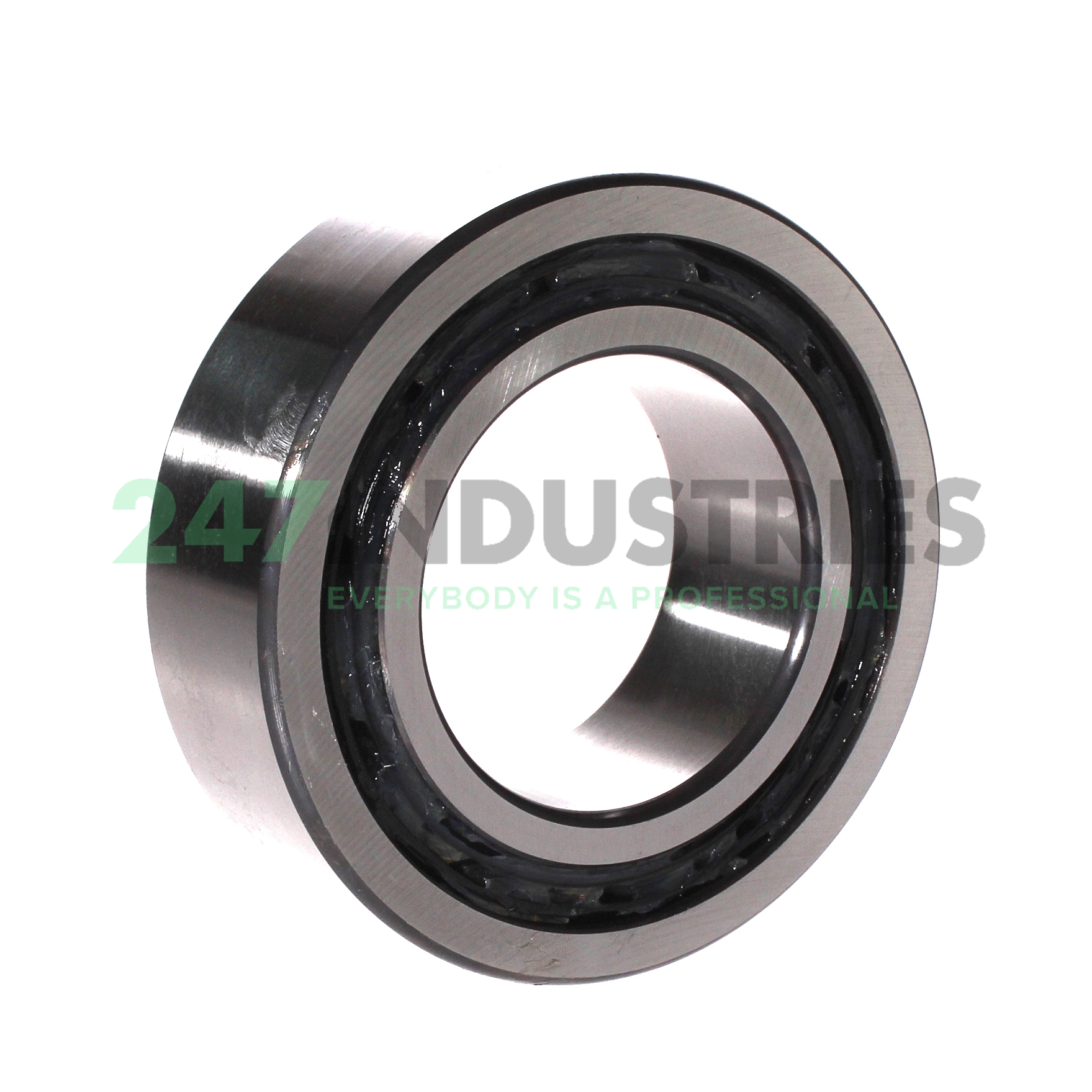

3214-B-TVH-C3 FAG

Double row angular contact ball bearing

Stock
11 pcs in stock and ready for shipment
Brand FAG
Article number 3214-B-TVH-C3 FAG
Inside diameter 70mm
Outside diameter 125mm
Width 39,7mm
Product description

The 3214-B-TVH-C3 FAG is a double row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single row angular contact ball bearings in O-arrangement but is slightly narrower. Also, the contact angle and the design of the bearing rings are different. double row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

Read more Show less
Help with this product

Downloads and links

Similar to: 3214-B-TVH-C3 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 70
  2. Outer (D) MM 125
  3. Width (B) MM 39,7
  4. Inner (d) Inch 2.7559
  5. Outer (D) Inch 4.9213
  6. Width (B) Inch 1.563
  7. Width (b) mm 39,7

Suffix description

  1. B Internal Design Modification
  2. TVH Moulded Polyamide Cage Snap Type, Rolling Element Riding
  3. C3 Internal Clearance Larger Than Normal

Technical details

  1. Availability 11 pcs
  2. Brand FAG
  3. Item number 3214-B-TVH-C3 FAG
  4. Also known as 0167123900030
  5. EAN 4012801271080
  6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 1.833

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal No Seal
  3. Cage Type P - Plastic Molded Cage
  4. External Modification No External Modification
  5. Radial Internal Play C3 Internal Play (Higher than Cn)
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 79000
  2. Radial Dynamic Load Rating Cr (N) 82000
  3. Basic static load rating, radial (C 0r) "79000.0000"
  4. Limiting speed (n G) 4150
  5. Reference speed (n ϑr) 5600
  6. ECLASS number 23-05-08-03
  7. ECLASS2 number 23-05-08-03
  8. Medias description Angular contact ball bearing 32..-B-TVH, double row, 1 inner ring

Downloads and links

  1. Link to manufacturer Link to manufacturer
Show all details Show less
