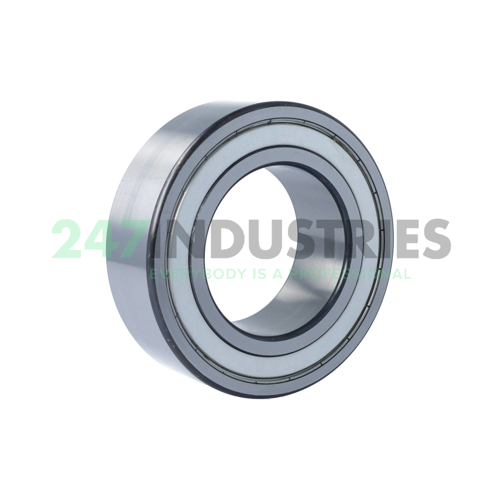

3216-B-2Z-TVH FAG

Double row angular contact ball bearing

Stock
6 pcs in stock and ready for shipment
Brand FAG
Article number 3216-B-2Z-TVH FAG
Inside diameter 80mm
Outside diameter 140mm
Width 44,4mm
Product description

The 3216-B-2Z-TVH FAG is a double row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single row angular contact ball bearings in O-arrangement but is slightly narrower. Also, the contact angle and the design of the bearing rings are different. double row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

Read more Show less
Help with this product

Downloads and links

Similar to: 3216-B-2Z-TVH FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 80
  2. Outer (D) MM 140
  3. Width (B) MM 44,4
  4. Inner (d) Inch 3.1496
  5. Outer (D) Inch 5.5118
  6. Width (B) Inch 1.748
  7. Width (b) mm 44,4

Suffix description

  1. B Internal Design Modification
  2. 2Z Shields At Both Sides Of The Bearing
  3. TVH Moulded Polyamide Cage Snap-Type, Rolling Element Riding

Technical details

  1. Availability 6 pcs
  2. Brand FAG
  3. Item number 3216-B-2Z-TVH FAG
  4. Also known as 0190554040000
  5. EAN 4012801271110
  6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 2.35

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal ZZ/2Z - Steel Seal on Two Sides
  3. Cage Type P - Plastic Molded Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 102000
  2. Radial Dynamic Load Rating Cr (N) 99000
  3. Basic static load rating, radial (C 0r) "102000.0000"
  4. Limiting speed (n G) 3650
  5. Reference speed (n ϑr) 5100
  6. ECLASS number 23-05-08-03
  7. ECLASS2 number 23-05-08-03
  8. Medias description Angular contact ball bearings 32..-B-2Z, main dimensions to DIN 628-3, double row, gap seals on both sides, contact angle a = 25°
