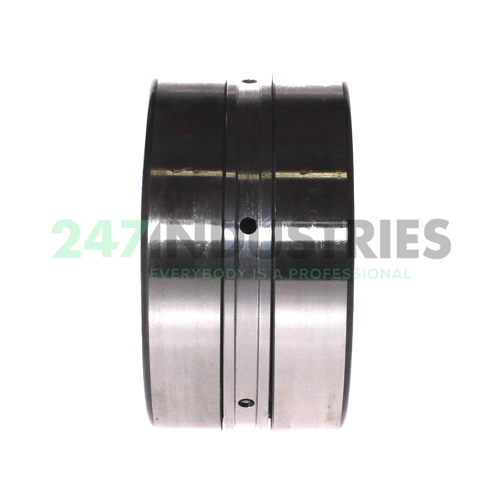

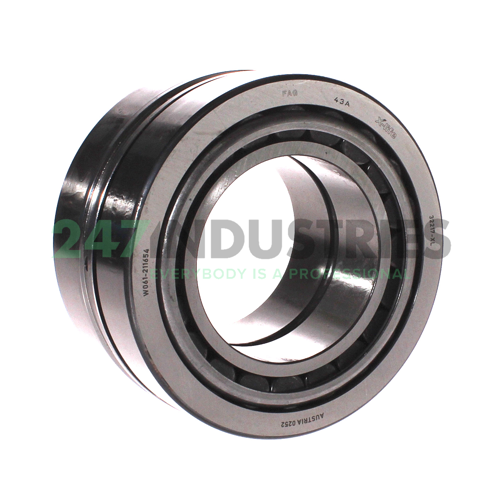

32217-XL-DF-A220-270 FAG

All dimensions

1. Inner (d) MM 85
2. Outer (D) MM 150
3. Width (B) MM 77
4. Inner (d) Inch 3.3465
5. Outer (D) Inch 5.9055
6. Width (B) Inch 3.0315
7. Inner ring total width (2B) mm 72
8. Outer ring total width (2T) mm 77

Suffix description

1. XL X-Life
2. DF Two Tapered Roller Bearings Matched In An X Arrangement,With An Intermediate Ring Between The Outer Rings
3. A220-270 Axial Clearance In µm

Technical details

1. Availability 6 pcs
2. Brand FAG
3. Item number 32217-XL-DF-A220-270 FAG
4. Also known as 0923768864081
   32217-DF-A220-270

5. EAN 4054371170394
6. Category Tapered Roller Bearing Single Row (paired metric)

Weight and Dimensions

1. Weight (kg) 5.45

Product Properties

1. Tapered Roller Pair Internal Play 220-270µm

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 610000
2. Radial Dynamic Load Rating Cr (N) 460000
3. Basic static load rating, radial (C 0r) "610000.0000"
4. Limiting speed (n G) 5200
5. Thermal speed rating (n ϑr) 2850
6. ECLASS number 23-05-09-10
7. ECLASS2 number 23-05-09-10
8. Medias description Tapered roller bearing set 322..-XL-DF, X-arrangement
