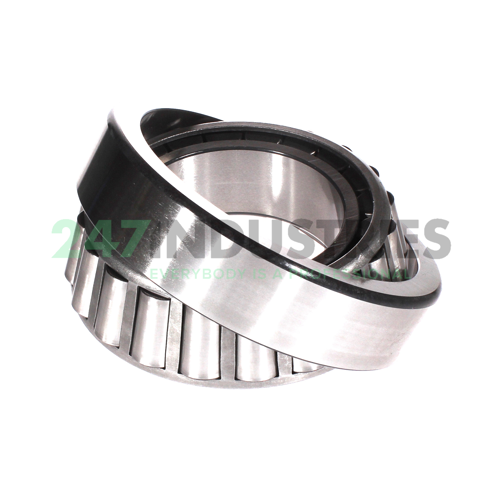

32219-A FAG

Single-row tapered roller bearing

Stock
1 pc in stock and ready for shipment
Brand FAG
Article number 32219-A FAG
Inside diameter 95mm
Outside diameter 170mm
Width 45,5mm
Product description

The 32219-A FAG is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical. This design allows these versatile bearings to accommodate combined loads. They support high radial and axial loads (in one direction). The greater the contact angle, the greater the axial load capacity.

The 32219-A FAG is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consists of an inner ring with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of the internal construction, they must be mounted in mirror-image arrangement together with a second tapered roller bearing. Paired bearing sets can also be applied in X, O, or tandem arrangements.

Read more Show less
Help with this product

Downloads and links

Similar to: 32219-A FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 95
  2. Outer (D) MM 170
  3. Width (B) MM 45,5
  4. Inner (d) Inch 3.7402
  5. Outer (D) Inch 6.6929
  6. Width (B) Inch 1.7913

Suffix description

  1. A Internal Design Modification

Technical details

  1. Availability 1 pc
  2. Brand FAG
  3. Item number 32219-A FAG
  4. Category Tapered Roller Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 4.26

Product Properties

  1. Precision Standard Precision
