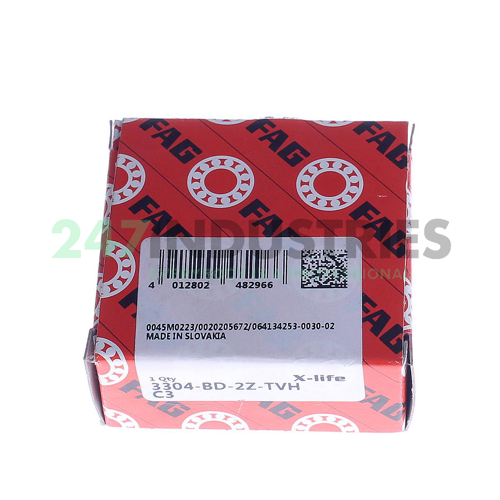

3304-BD-2Z-TVH FAG

Double row angular contact ball bearing

Stock
3 pcs in stock and ready for shipment
Brand FAG
Article number 3304-BD-2Z-TVH FAG
Inside diameter 20mm
Outside diameter 52mm
Width 22,2mm
Product description

The 3304-BD-2Z-TVH FAG is a double row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single row angular contact ball bearings in O-arrangement but is slightly narrower. Also, the contact angle and the design of the bearing rings are different. double row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

Read more Show less
Help with this product

Downloads and links

Similar to: 3304-BD-2Z-TVH FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 52
  3. Width (B) MM 22,2
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 2.0472
  6. Width (B) Inch 0.874

Suffix description

  1. BD Modified Internal Construction, Contact Angle α=30°, Without Filling Slot
  2. 2Z Shields At Both Sides Of The Bearing
  3. TVH Moulded Polyamide Cage Snap-Type, Rolling Element Riding

Technical details

  1. Availability 3 pcs
  2. Brand FAG
  3. Item number 3304-BD-2Z-TVH FAG
  4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 0.2218

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal ZZ/2Z - Steel Seal on Two Sides
  3. Cage Type P - Plastic Molded Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Split Inner ring / Outer ring Standard
