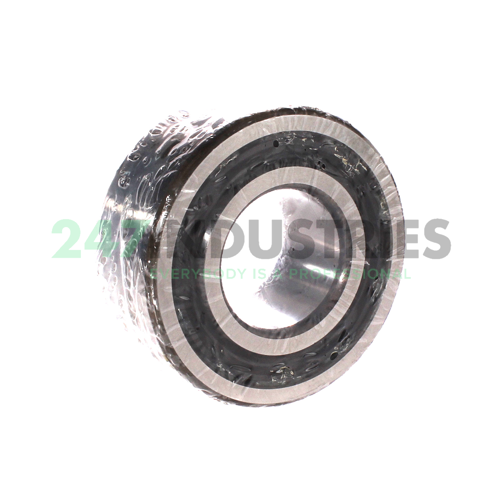

3312.A SNR

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 130
3. Width (B) MM 54
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 5.1181
6. Width (B) Inch 2.126

Suffix description

1. A No Filling Slot With Polyamide Cage, Angle 25°

Technical details

1. Availability 0 pcs
2. Brand SNR
3. Item number 3312.A SNR
4. Also known as 3312-B-TVH

5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 3.1

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
