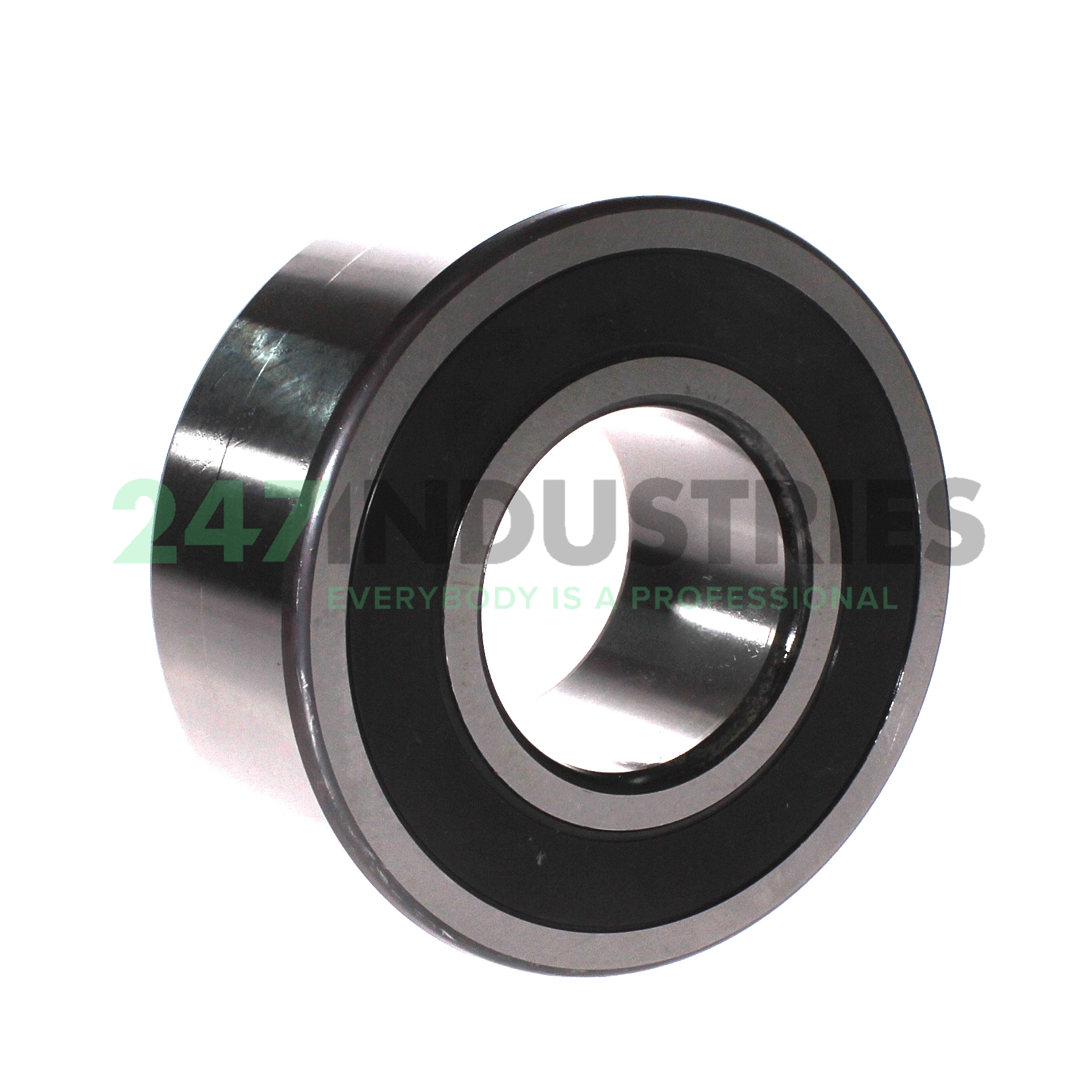

3313-2RS INA

All dimensions

1. Inner (d) MM 65
2. Outer (D) MM 140
3. Width (B) MM 58,7
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 5.5118
6. Width (B) Inch 2.311
7. Width (b) mm 58,7

Suffix description

1. 2RS Lip Seal At Both Sides Of The Bearing, Axial Fitting

Technical details

1. Availability 2 pcs on Fri 29 Nov
2. Brand INA
3. Item number 3313-2RS INA
4. Also known as 0009702390000

5. EAN 4054365729164
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 3.92

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 125000
2. Radial Dynamic Load Rating Cr (N) 158000
3. Basic static load rating, radial (C 0r) "125000.0000"
4. Limiting speed (n G) 3150
5. ECLASS number 23-05-08-03
6. ECLASS2 number 23-05-08-03
7. Medias description Angular contact ball bearing 33..-B-2RS-TVH, double row, 1 inner ring
