3313-BD-XL-TVH FAG

All dimensions

1. Inner (d) MM 65
2. Outer (D) MM 140
3. Width (B) MM 58,7
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 5.5118
6. Width (B) Inch 2.311
7. Width (b) mm 58,7

Suffix description

1. BD Modified Internal Construction, Contact Angle α=30°, Without Filling Slot
2. XL X-Life
3. TVH Moulded Polyamide Cage Snap Type, Rolling Element Riding

Technical details

1. Availability 2 pcs
2. Brand FAG
3. Item number 3313-BD-XL-TVH FAG
4. Also known as 0788348560000
   3313-BD-TVH

5. EAN 4064327359667

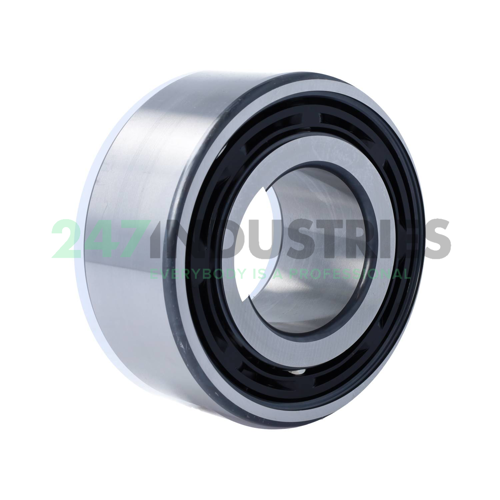

6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 3.92

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 119000
2. Limiting speed (n G) 4900
3. Reference speed (n ϑr) 5300
