3314-DA-MA FAG

Double row angular contact ball bearing with split inner ring

Stock
2 pcs in stock and ready for shipment
Brand FAG
Article number 3314-DA-MA FAG
Inside diameter 70mm
Outside diameter 150mm
Width 63,5mm
Product description

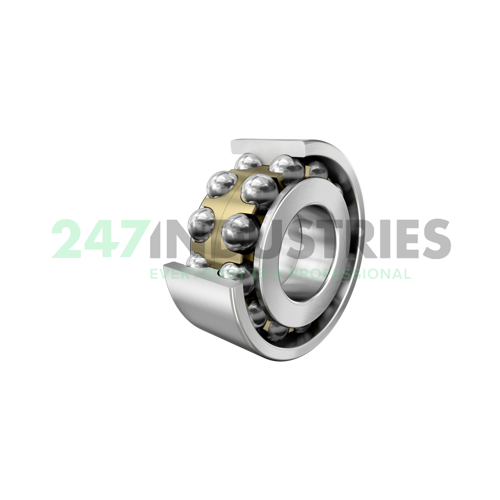

The 3314-DA-MA FAG is a double row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single row angular contact ball bearings in O-arrangement but is slightly narrower. Also, the contact angle and the design of the bearing rings are different. double row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

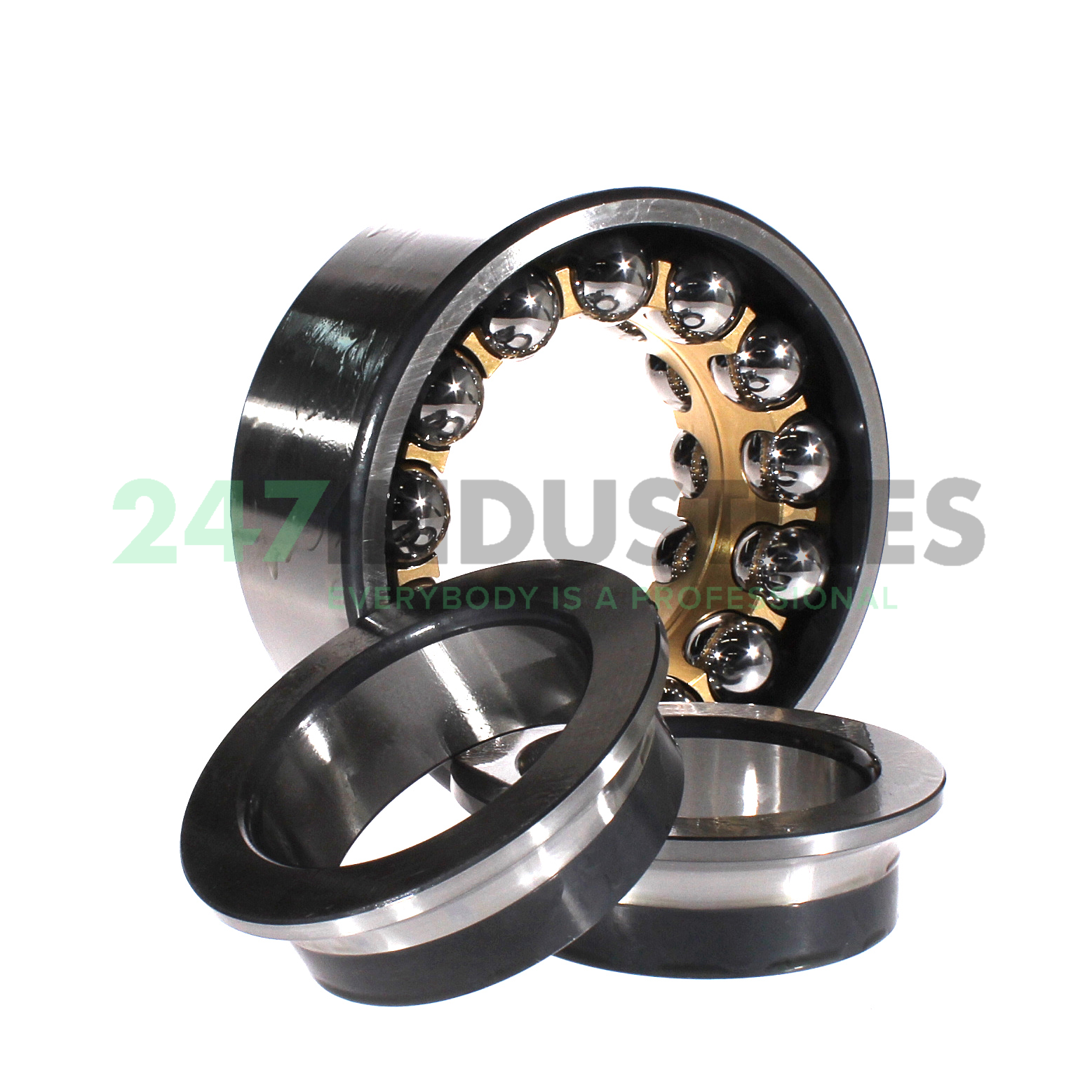

The 3314-DA-MA FAG has a split inner ring. This bearing type combines a large number of balls with a large contact angle. This design makes the bearing suitable for higher axial loads in both directions. Bearings with split inner rings generally have a tighter fit than bearings with single-piece inner rings.

Read more Show less
Help with this product

Downloads and links

Similar to: 3314-DA-MA FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 70
  2. Outer (D) MM 150
  3. Width (B) MM 63,5
  4. Inner (d) Inch 2.7559
  5. Outer (D) Inch 5.9055
  6. Width (B) Inch 2.5
  7. Width (b) mm 63,5

Suffix description

  1. DA Ball Bearing Double Row With Split Inner Ring
  2. MA Machined Brass Cage, Outer Ring Guided

Technical details

  1. Availability 2 pcs
  2. Brand FAG
  3. Item number 3314-DA-MA FAG
  4. Also known as 0383813460000
  5. EAN 4012801196826
  6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 5.55

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal No Seal
  3. Cage Type MA - Brass Cage, Centered on Outer Ring
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 157000
  2. Radial Dynamic Load Rating Cr (N) 157000
  3. Basic static load rating, radial (C 0r) "157000.0000"
  4. Limiting speed (n G) 6200
  5. Reference speed (n ϑr) 4550
  6. ECLASS number 23-05-08-03
  7. ECLASS2 number 23-05-08-03
  8. Medias description Angular contact ball bearing 33..-DA-MA, double row, 2 inner rings
