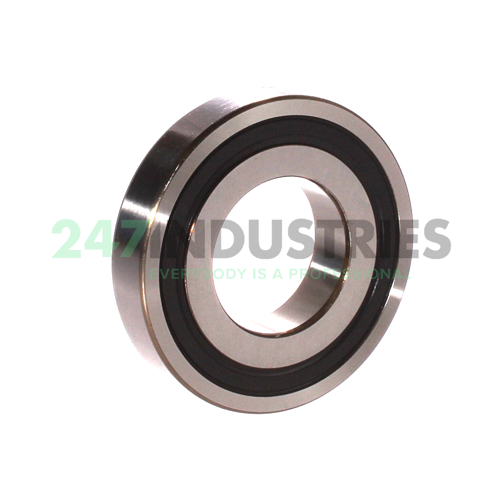

35TAC72CDDGSUHPN7C WPHLQ NSK

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 72
3. Width (B) MM 15
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.5906

Suffix description

1. C 60° Contact Angle
2. DD Rubber Seals At Each Side Of The Bearing
3. G
4. SUH Single Universal Bearing, Heavy Preload
5. PN7C NSK Standard Accuracy Class 7C (Equivalent To Axial Runout Class 2)
6. WPH Lubricant, Operating Temperature -40 ~ 150°C
7. L Grease Packed Less Than Standard
8. Q Oil Soaking

Technical details

1. Availability 4 pcs
2. Brand NSK
3. Item number 35TAC72CDDGSUHPN7C WPHLQ NSK
4. Also known as 35TAC72CDDGSUHPN7C

5. Category Angular Contact Thrust Ball Bearings, Single Direction

Weight and Dimensions

1. Weight (kg) 0.31

Product Properties

1. Cage Type S - Steel or Standard Cage
2. Precision Precision P2
