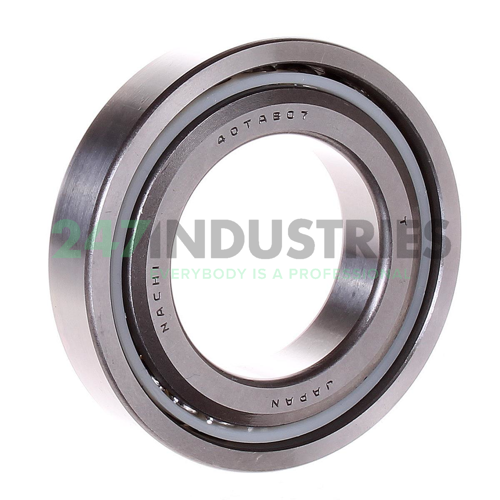

40TAB07U/GM Nachi

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 72
3. Width (B) MM 15
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.5906

Suffix description

1. U Angular Contact Single Bearing - Ground For Universal Duplexing
2. GM Medium Preload

Technical details

1. Availability 0 pcs
2. Brand Nachi
3. Item number 40TAB07U/GM Nachi
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.13

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision Standard Precision
4. Contact Angle 60 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GB - Medium Preload
7. Lubrication Standard Lubrication
