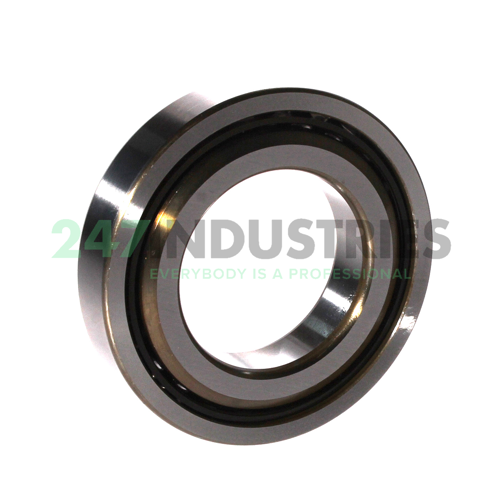

40TAC72CSUHPN7C NSK

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 72
3. Width (B) MM 15
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.5906

Suffix description

1. C 60° Contact Angle
2. SUH Single Universal Bearing, Heavy Preload
3. PN7C NSK Standard Accuracy Class 7C (Equivalent To Axial Runout Class 2)

Technical details

1. Availability 38 pcs
2. Brand NSK
3. Item number 40TAC72CSUHPN7C NSK
4. EAN 00029176975127
5. Category Angular Contact Thrust Ball Bearings, Single Direction

Weight and Dimensions

1. Weight (kg) 0.275

Product Properties

1. Cage Type S - Steel or Standard Cage
2. Precision Precision P2
