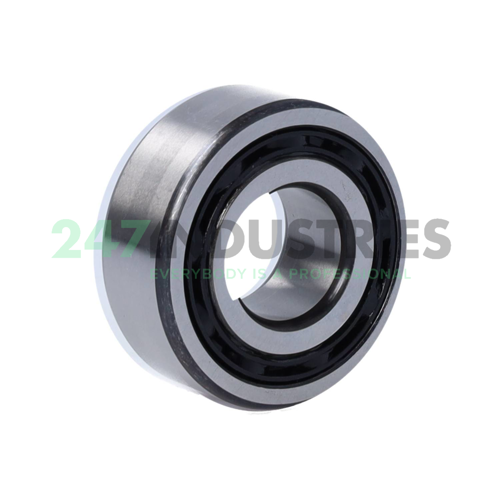

4204BTNGC3 YRLN5 NSK

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 47
3. Width (B) MM 18
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.7087

Suffix description

1. B Internal Design Modification
2. TNG Solid Cage Of Glass-Fibre Reinforced Polyamide, Ball Riding
3. C3 Internal Clearance Larger Than Normal
4. YRL Lubricant, Operating Temperature -30 ~ 120°C
5. N Normal Filling 35%
6. 5 Standard Single Pack. Bearings In Polythene Bags Or Hizex Film Are Placed In Individual Cardboard Boxes. The Individual Boxes Are Then Placed In A Cardboard Outer Carton And Polystrene Filled

Technical details

1. Availability 1 pc
2. Brand NSK
3. Item number 4204BTNGC3 YRLN5 NSK
4. Also known as 4204BTNGC3

5. Category Deep Groove Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.155

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
