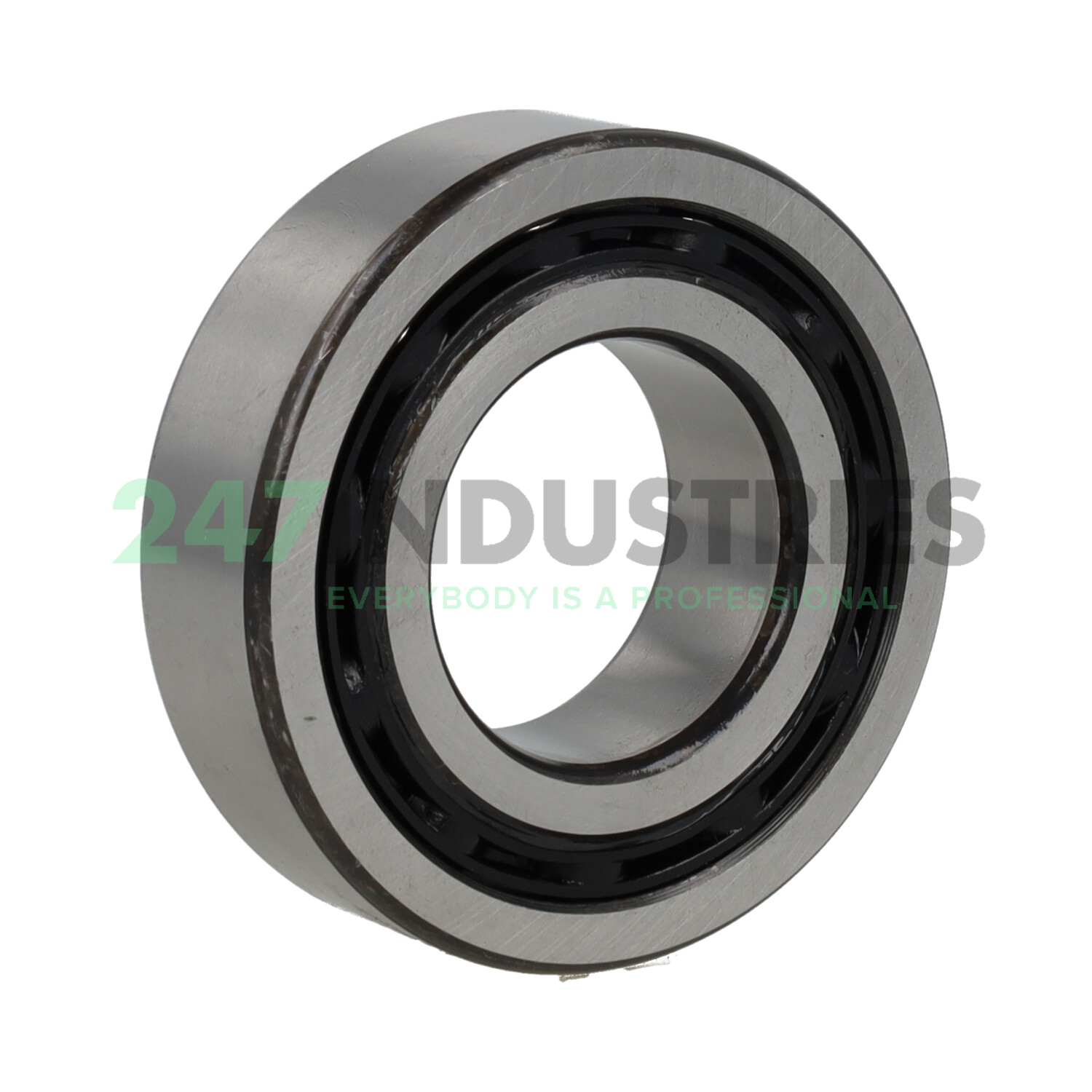

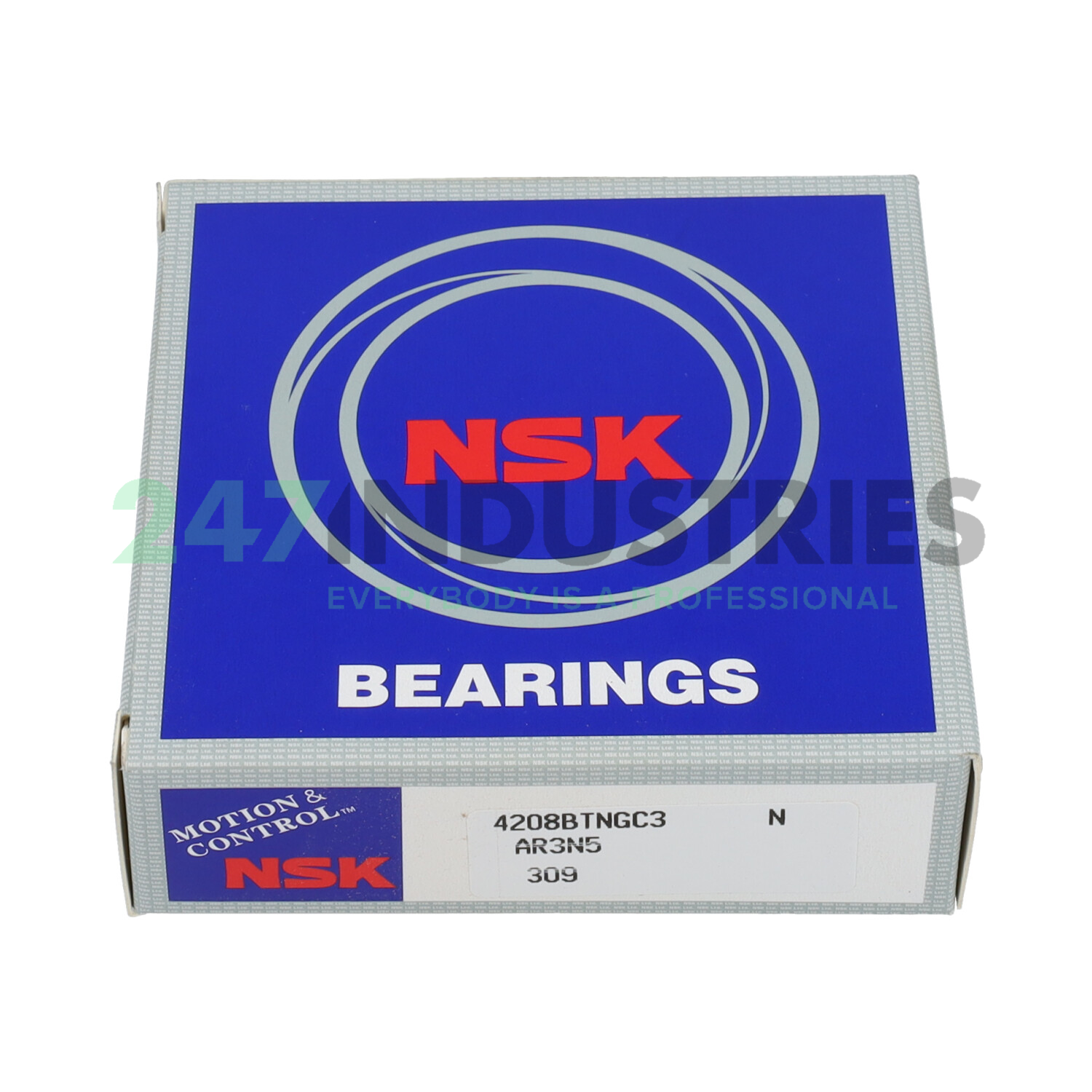

4208BTNGC3 NSK

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 80
3. Width (B) MM 23
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.9055

Suffix description

1. B Internal Design Modification
2. TNG Solid Cage Of Glass-Fibre Reinforced Polyamide, Ball Riding
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 4 pcs
2. Brand NSK
3. Item number 4208BTNGC3 NSK
4. EAN 00029176423154
5. Category Deep Groove Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.545

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
