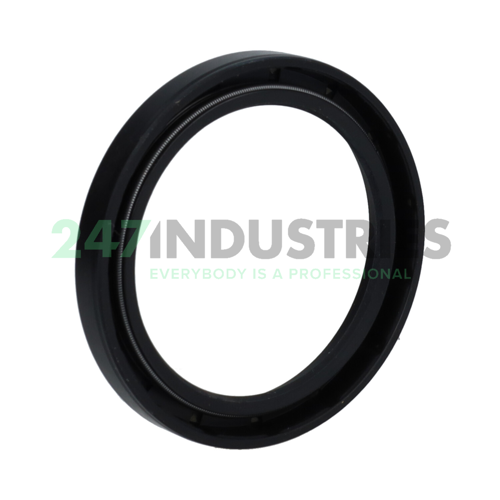

50X65X8 WA NBR Dichtomatic

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 65
3. Width (B) MM 8
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 2.5591
6. Width (B) Inch 0.315

Suffix description

1. NBR Standard Oil Seal According To DIN3760 / ISO6194 With An Elastomer Outside And A Metal Ring And Also A Spring And Lip. Standard Material Is NBR70, Colour Black, Spring Is According to DIN EN 10270-1, Ring Is According to DIN EN 10139. Temperature: -40 ~ 100°C

Technical details

1. Availability 38 pcs
2. Brand Dichtomatic
3. Item number 50X65X8 WA NBR Dichtomatic
4. Also known as 50X65X8

5. Category Oil-Seal Rubber Single Lip with Springring

Weight and Dimensions

1. Weight (kg) 0.02
