51100 NSK

Single-direction thrust ball bearing

Stock
93 pcs in stock and ready for shipment
Brand NSK
Article number 51100 NSK
Inside diameter 10mm
Outside diameter 24mm
Width 9mm
Product description

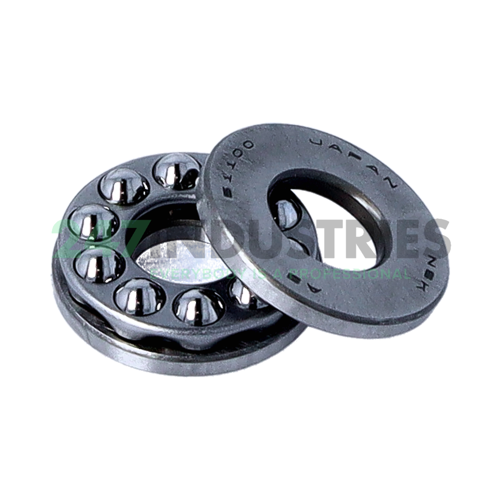

The 51100 NSK belongs to the single direction thrust ball bearings, also called ball thrust bearings or axial deep groove ball bearings. These bearings consist of a shaft ring, a housing ring and a ball and cage assembly. Thrust ball bearings have an open design. The balls make them suitable for high rotational speeds.

Single direction thrust ball bearings can only be loaded axially in one direction. A shaft can be locked in one direction this way. Radially, they must not be loaded. The shaft ring is attached to the shaft. This ring rotates along with the shaft. The housing ring has a slightly larger bore diameter, allowing the shaft to pass with some clearance.

As thrust ball bearings can be disassembled, the components can easily be mounted separately. Be careful not to mix up the shaft and housing ring when you are assembling the bearing. The housing ring of the 51100 NSK has a flat seat. As a result, this bearing cannot compensate for any misalignment between the shaft and housing.

Read more Show less
Help with this product

Similar to: 51100 NSK

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 10
  2. Outer (D) MM 24
  3. Width (B) MM 9
  4. Inner (d) Inch 0.3937
  5. Outer (D) Inch 0.9449
  6. Width (B) Inch 0.3543

Technical details

  1. Availability 93 pcs
  2. Brand NSK
  3. Item number 51100 NSK
  4. EAN 00029176026355
  5. Category Thrust Ball Bearing Single Direction

Weight and Dimensions

  1. Weight (kg) 0.02

Product Properties

  1. Cage Type S - Steel or Standard Cage
  2. Precision Standard Precision
