51318 FAG

Single-direction thrust ball bearing

Stock
16 pcs in stock and ready for shipment
Brand FAG
Article number 51318 FAG
Inside diameter 90mm
Outside diameter 155mm
Width 50mm
Product description

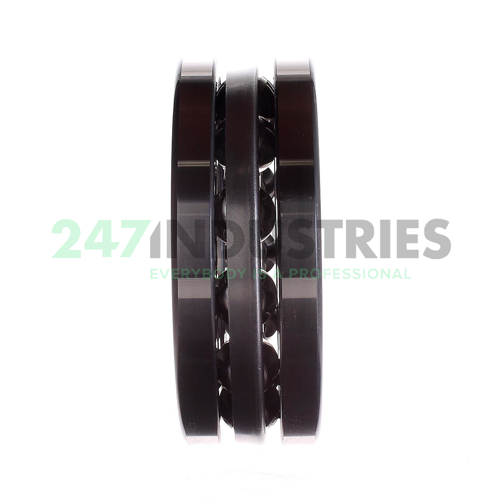

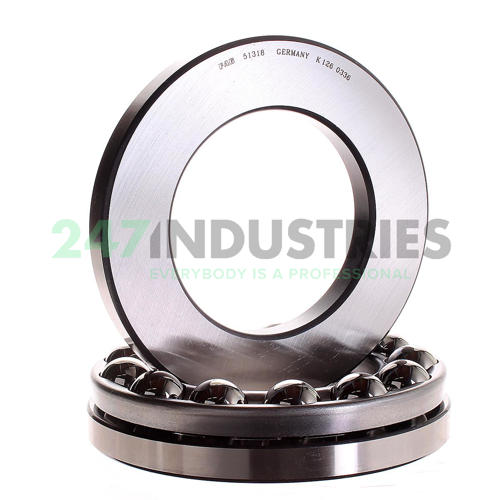

The 51318 FAG belongs to the single direction thrust ball bearings, also called ball thrust bearings or axial deep groove ball bearings. These bearings consist of a shaft ring, a housing ring and a ball and cage assembly. Thrust ball bearings have an open design. The balls make them suitable for high rotational speeds.

Single direction thrust ball bearings can only be loaded axially in one direction. A shaft can be locked in one direction this way. Radially, they must not be loaded. The shaft ring is attached to the shaft. This ring rotates along with the shaft. The housing ring has a slightly larger bore diameter, allowing the shaft to pass with some clearance.

As thrust ball bearings can be disassembled, the components can easily be mounted separately. Be careful not to mix up the shaft and housing ring when you are assembling the bearing. The housing ring of the 51318 FAG has a flat seat. As a result, this bearing cannot compensate for any misalignment between the shaft and housing.

Read more Show less
Help with this product

Downloads and links

Similar to: 51318 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 90
  2. Outer (D) MM 155
  3. Width (B) MM 50
  4. Inner (d) Inch 3.5433
  5. Outer (D) Inch 6.1024
  6. Width (B) Inch 1.9685
  7. Outer diameter housing washer (D) mm 155
  8. Height (T) mm 50

Technical details

  1. Availability 16 pcs
  2. Brand FAG
  3. Item number 51318 FAG
  4. Also known as 0167153900000
  5. EAN 4012801198264
  6. Category Thrust Ball Bearing Single Direction

Weight and Dimensions

  1. Weight (kg) 3.88

Product Properties

  1. Cage Type S - Steel or Standard Cage
  2. Precision Standard Precision

Data from Schaeffler (medias)

  1. Axial Static Load Rating C0a (N) 455000
  2. Axial Dynamic Load Rating Ca (N) 193000
  3. Limiting speed (n G) 2240
  4. Reference speed (n ϑr) 4050
  5. ECLASS number 23-05-10-01
  6. ECLASS2 number 23-05-10-01
  7. Medias description Axial deep groove ball bearings 513, main dimensions to DIN 711/ISO 104, single direction, separable

Downloads and links

  1. Link to manufacturer Link to manufacturer
