52204 ZKL

Double direction thrust ball bearing

Stock
15 pcs in stock and ready for shipment
Brand ZKL
Article number 52204 ZKL
Inside diameter 15mm
Outside diameter 40mm
Width 26mm
Product description

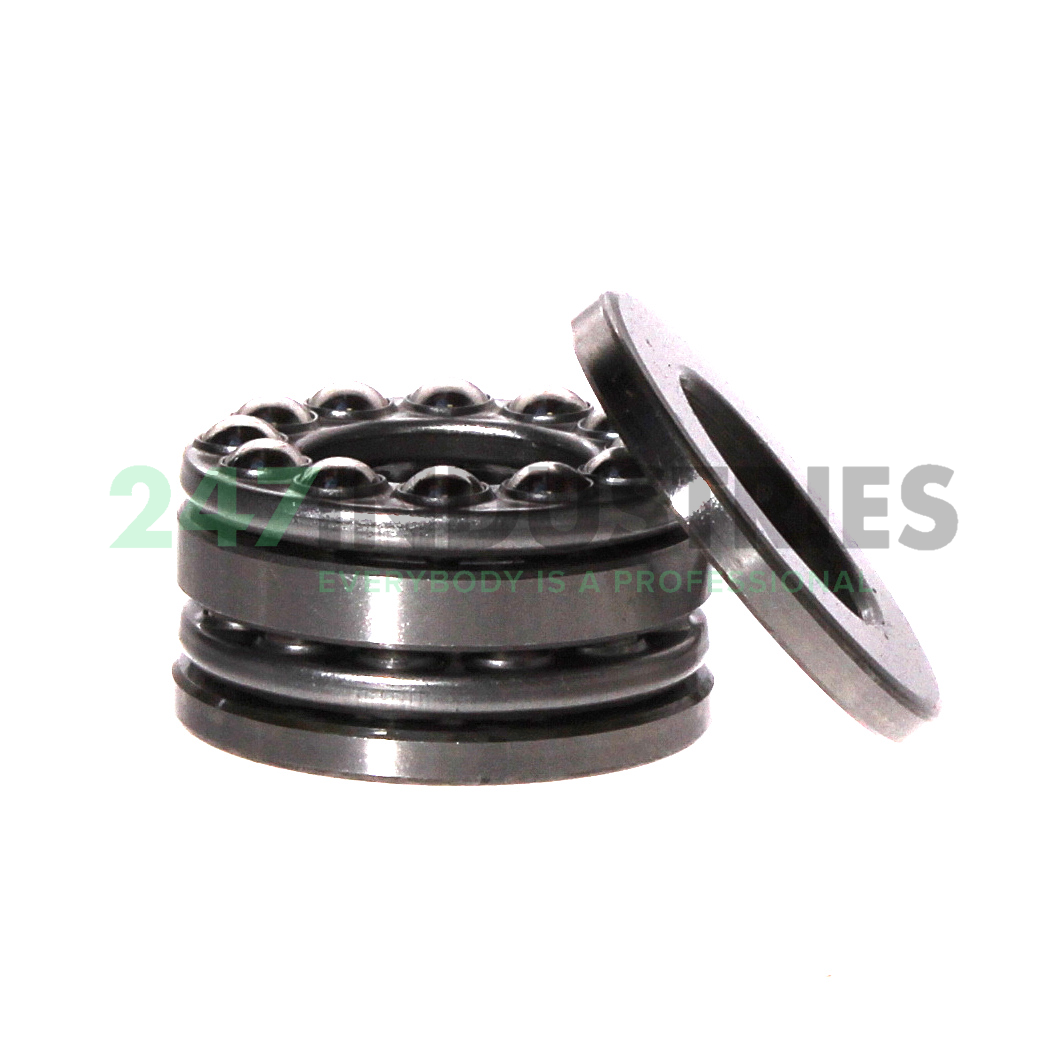

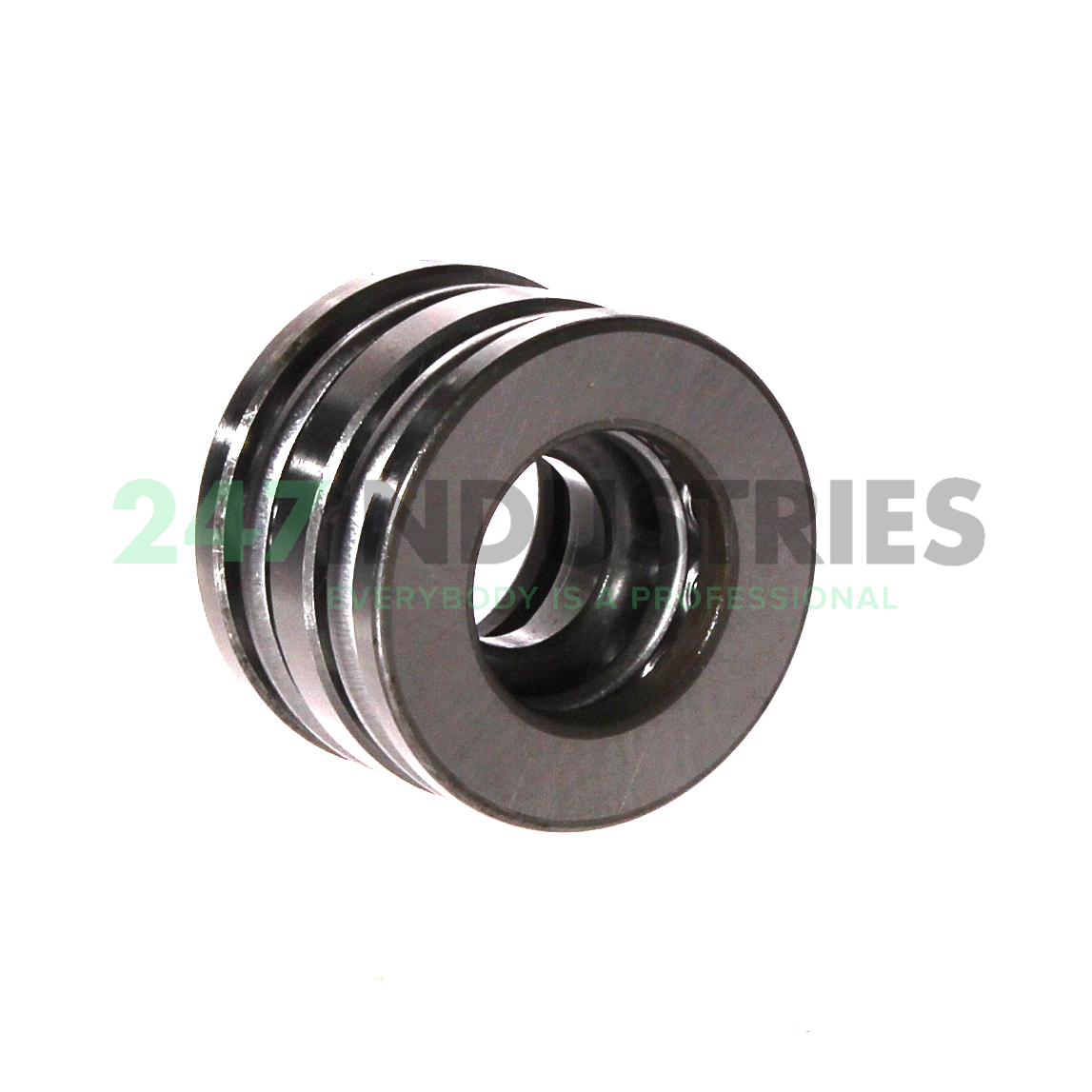

The 52204 ZKL is a double-direction thrust ball bearing, also referred to as a thrust bearing or axial deep groove ball bearing. This bearing type consists of a shaft washer, two housing washers, and two ball and cage assemblies. Thrust ball bearings have an open design. High rotational speeds are made possible by the ball elements. As thrust ball bearings are separable, the components can be easily assembled independently of each other.

Double-direction thrust ball bearings are suitable for axial loads in both directions, permitting axial locating of the shaft in either direction. However, these bearings are not intended for radial loads. The shaft washer is mounted on the shaft and rotates along with it, while the housing washers have a slightly larger bore diameter, providing clearance for free shaft movement. Additionally, these housing washers have flat seats, meaning that the 52204 ZKL cannot compensate for any misalignments between the shaft and the housing.

Read more Show less
Help with this product

Similar to: 52204 ZKL

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 15
  2. Outer (D) MM 40
  3. Width (B) MM 26
  4. Inner (d) Inch 0.5906
  5. Outer (D) Inch 1.5748
  6. Width (B) Inch 1.0236

Technical details

  1. Availability 15 pcs
  2. Brand ZKL
  3. Item number 52204 ZKL
  4. Category Thrust Ball Bearing Double Direction

Weight and Dimensions

  1. Weight (kg) 0.15

Product Properties

  1. Cage Type S - Steel or Standard Cage
  2. Precision Standard Precision
