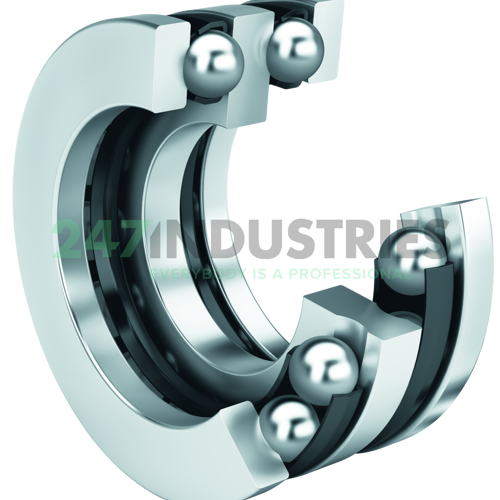

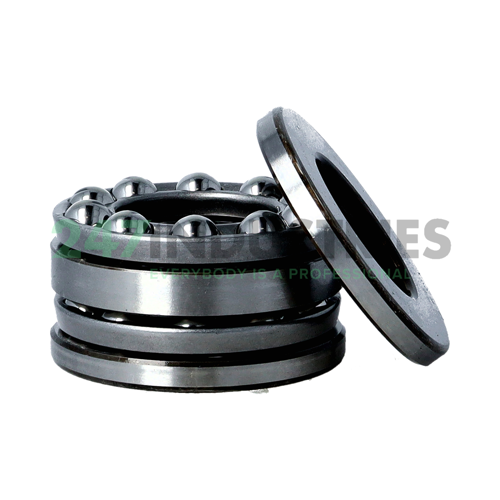

52307 FAG

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 68
3. Width (B) MM 44
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.6772
6. Width (B) Inch 1.7323
7. Outer diameter housing washer (D) mm 68
8. Height (T 2) mm 44

Technical details

1. Availability 37 pcs
2. Brand FAG
3. Item number 52307 FAG
4. Also known as 0167156240000

5. EAN 4012801162692
6. Category Thrust Ball Bearing Double Direction

Weight and Dimensions

1. Weight (kg) 0.678

Product Properties

1. Cage Type S - Steel or Standard Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 89000
2. Axial Dynamic Load Rating Ca (N) 50000
3. Limiting speed (n G) 4850
4. Reference speed (n ϑr) 7600
5. ECLASS number 23-05-10-01
6. ECLASS2 number 23-05-10-01
7. Medias description Axial deep groove ball bearings 523, main dimensions to DIN 711/ISO 104, double direction, separable
